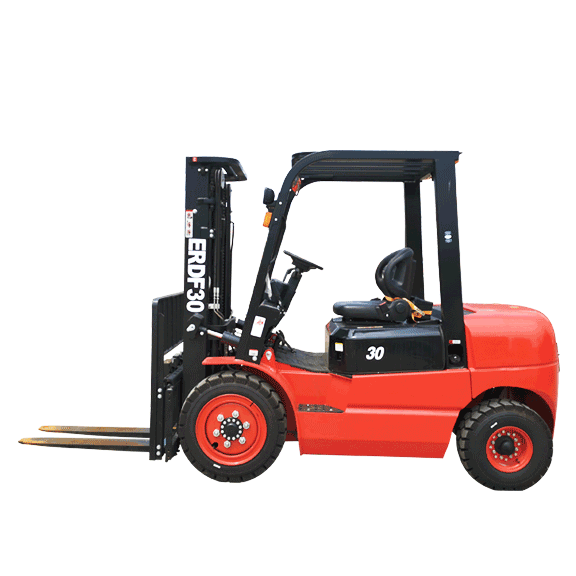

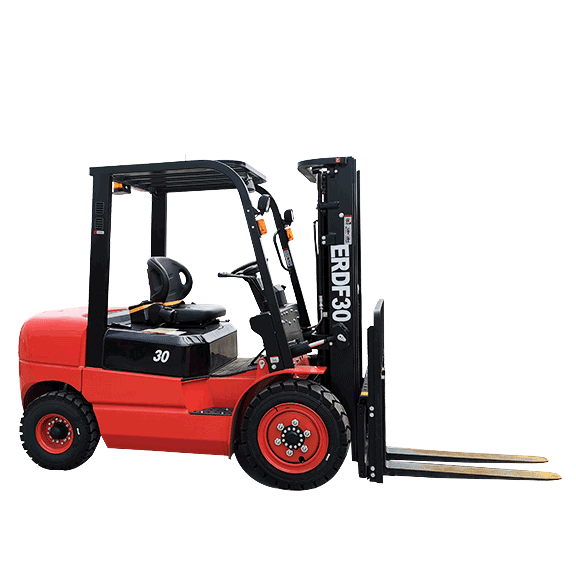

Diesel Forklift—ERDF30

Specifications | Descriptions | Technical Parameters

With 11 years wheel loader exporting experience and under the help of our own customer, Qingdao Everun Machinery Co., Ltd established in beautiful coastal city Qingdao enjoying convenient transportation access.

Specifications

Rated Capacity

3500kg

Load Center

500mm

Power Type

Diesel

Descriptions

With 11 years wheel loader exporting experience and under the help of our own customer, Qingdao Everun Machinery Co., Ltd established in beautiful coastal city Qingdao enjoying convenient transportation access.

Technical Parameters

FEATURE

SIZE / DETAILS

Term No. ERDF30
Rated Capacity 3000kg
Load Center 500mm
Power Type Diesel
Transmission Hydraulic
Lifting Height 3000mm
Free Lifting Height 120mm
Turning Radius 2500mm
Overall Length 3930mm
Overall Width 1230mm
Overall Height(Mast Lowered) 2070mm
Overall Height(Mast Raised) 4210mm
Overall Height(Overhead Guard) 2190mm
Fork Length 1220mm
Fork Width 125mm
Fork Thickness 45mm
Max. Driving Speed(With/Without Load) 18/20km/h
Max. Lifting Speed(With Load) 400mm/s
Max. Traction(With Without Load) 15.5/10.5kn
Gradeability(With Without Load) 15/20%
Tilting Angles(Forward/Backward) 6/10°
Service Weight 4120kg
Engine Model CHINA ENGINE
Power 40kw
Rated Speed 2650rpm
Displancement 2.67L
No. Of Cylinder 4
Front Overhang 465mm
Wheel Base 1750mm
Front Tread 1010mm
Rear Tread 980mm
Front Tire 28x9-15
