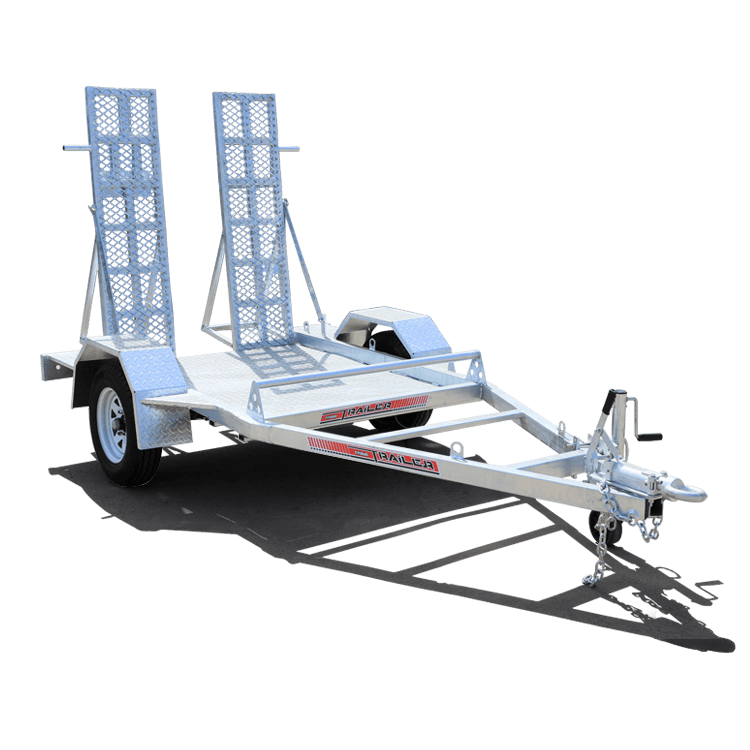

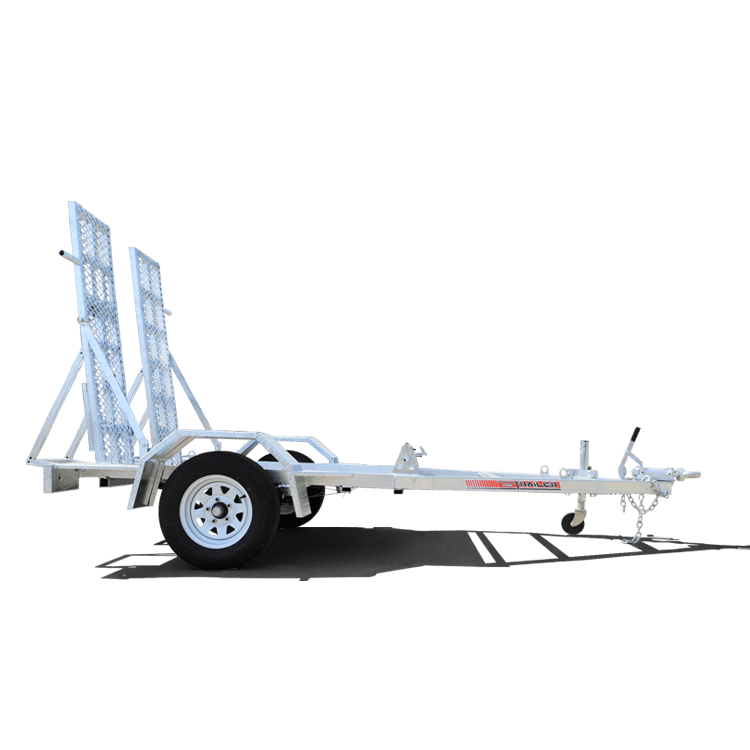

1.Folding Ladder Adopts Anti-skid Grid Design
2.Fully Hot Dip Galvanised Finishing
3.More Body Reinforcements
4.Leaf Springs Suspernsion



Wheel
2 PCSPayload
1100kgOverall size
3500x1800mm1.Folding Ladder Adopts Anti-skid Grid Design
2.Fully Hot Dip Galvanised Finishing
3.More Body Reinforcements
4.Leaf Springs Suspernsion
| Box size | L*W*H=1520x1150mm |
| Overall size | L*W=3500x1800mm |
| Payload | 1100kg |
| Surface treatment | hot dip galvanized |
| Brake | mechanical brake with hand brake |
| Suspension | 4-leaf spring, 45x6mm |
| Axle | 1 PCS, 50x50mm square pipe |
| Wheel | 2 PCS, 165R13C, paint rim |
| Taillight | LED light with plug and wire |
| Coupling | As local standard |
| Fitting | NO 6 |
| Drawer bar | 50x50x3mm |
| Chassis frame | 50x50x3, 40x40x2mm |
| Chassis board | 2.3mm checker plate |
| Ramp | 40x40mm pipe+mesh |
| Fender | 1.0mm plate |
| Package | frame in pallet. parts in carton |
| Container load | 42 trailers/20GP, 60 trailers/40HC |
