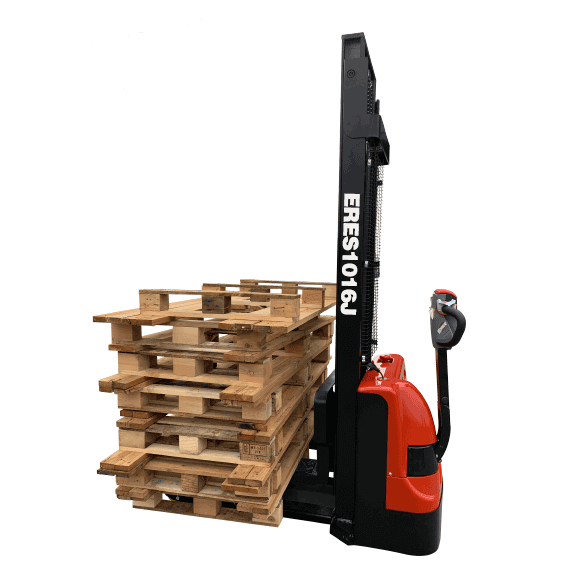

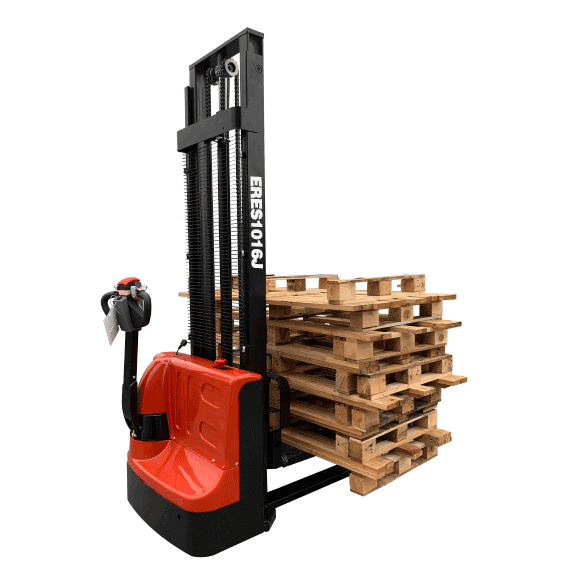

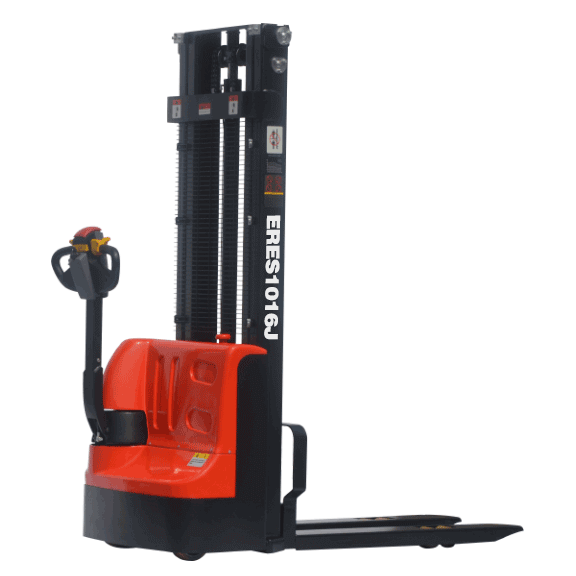

Electric Stacker - ERES1016J

Specifications | Descriptions | Technical Parameters

Loading capacity 1 ton & Lifting height 3000mm.
Side-driven design Small turning radius for narrow space.
Convenient operation & Energy saving.
High power lifting pump.
Low speed control for precise lifting.
Germany imported waterproof micro-switches for any harsh environments.
Yongci motor drive system.

Specifications

Load Capacity

1000kg

The Max Lifting Height

3000mm

Load Center Distance

600mm

Descriptions

Loading capacity 1 ton & Lifting height 3000mm.
Side-driven design Small turning radius for narrow space.
Convenient operation & Energy saving.
High power lifting pump.
Low speed control for precise lifting.
Germany imported waterproof micro-switches for any harsh environments.
Yongci motor drive system.

Technical Parameters

FEATURE

SIZE / DETAILS

Term No. ERES1016J
Load Capacity 1000kg
Load Capacity on Max Height 700kg
The Max Lifting Height 3000mm
Load Center Distance 600mm
Fork Length 1150mm
Single Fork Height 160mm
Overall Fork Width 570/695mm
Lowered Fork Height 86mm
Fixed Leg Length 928mm
Single Fixed Leg Width 124mm
Inside Width Between Fixed Legs 262/387mm
Outside Width of Between Fixed Legs 534/659mm
Aisle Width for Pallets 1000*1200 Crossways 2068mm
Aisle Width for Pallets 800*1200 Lengthways 2034mm
Turning Radius 1336mm
Front Wheel Size Number 80*70 4
Real Wheel Size Number 210*70 1
Balance Wheel Number 150*58 1
Overall Length(with Pedal Unfolded) 1755mm
Overall Width 795mm
Extended Mast Height 2424mm
Lowered Mast Height 1994mm
Battery Voltage(Dimensions) 2*12V/100AH(260/169/215)
The Controller 24V/90A
The Charger 24V/10A
Lifting Motor 2.2kw.Lift Speed Laden/unladen:100/150mm/s,Lowering Speed, Laden/unlaned:150/130mm/s
Driving Motor 0.75kw Driving Speed: Laden/Unladen:4.0/4.2km/h
Weight 425kg
