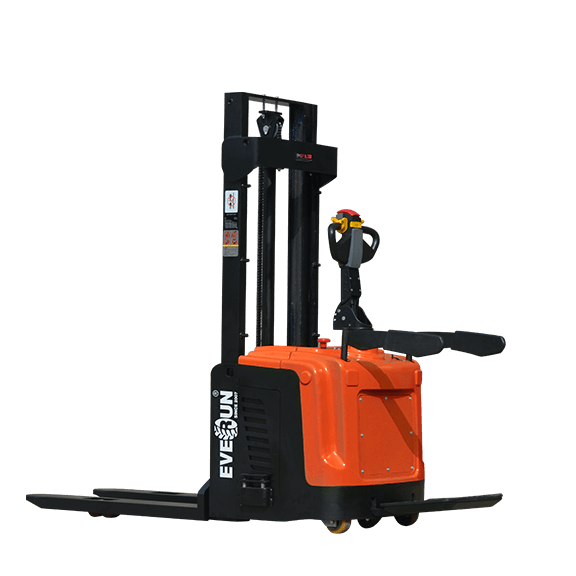

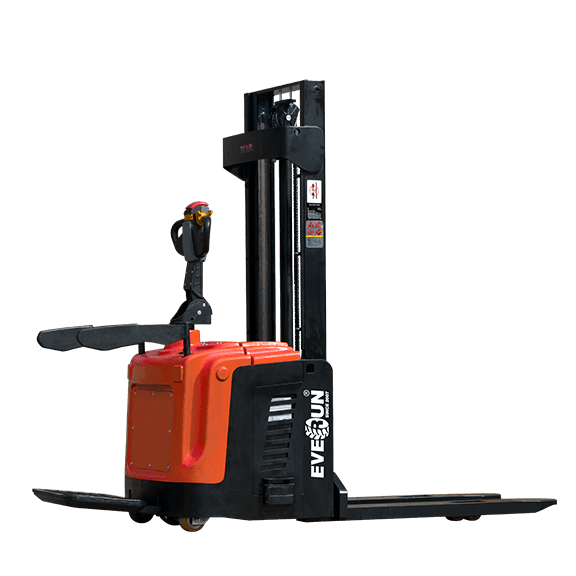

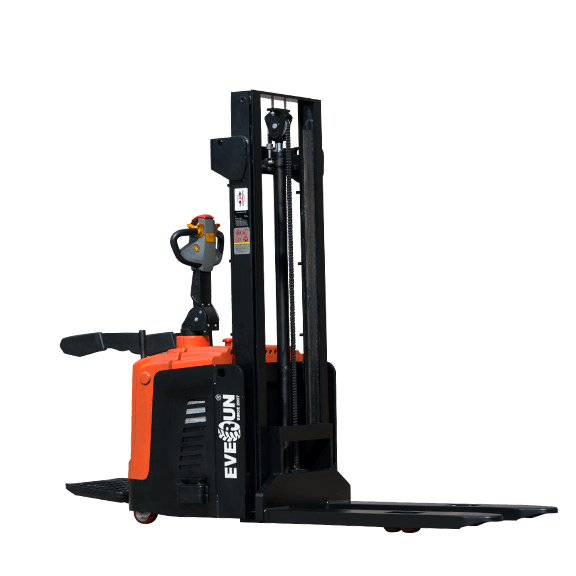

Electric Stacker - ERES2030G

Specifications | Descriptions | Technical Parameters

  • The floating stand in drive system ensures the stability of the runing vehicle. The floating stand in drive system ensures the stability ofthe.
  • Power outage and brake function. When the handle is released or pressed to the bottom, the truck will be power outage and or pressed to the bottom, the truck will be power outage and ramp, this feature is particularly useful, which makes the truck more secure and reliable.
  • Lifting limitation function. When the forks are raised to the maximum height, the system will automatically cut off the power supply for lifting, and smoothly stop.
  • Speed imitation switch for high level. When the mast lfts a short distance from the bottom, it will touch the switch.

Specifications

Load Capacity

2000kg

Max. Lift Height

3000mm

Fork Length

1150mm

Descriptions

  • The floating stand in drive system ensures the stability of the runing vehicle. The floating stand in drive system ensures the stability ofthe.
  • Power outage and brake function. When the handle is released or pressed to the bottom, the truck will be power outage and or pressed to the bottom, the truck will be power outage and ramp, this feature is particularly useful, which makes the truck more secure and reliable.
  • Lifting limitation function. When the forks are raised to the maximum height, the system will automatically cut off the power supply for lifting, and smoothly stop.
  • Speed imitation switch for high level. When the mast lfts a short distance from the bottom, it will touch the switch.

Technical Parameters

FEATURE

SIZE / DETAILS

Term No. ERES2030G
Load Capacity 2000kg
Load Capacity on Max. Height 1000kg
The Max. Lifting Height 3000mm
Load Center Distance 600mm
Fork Length 1150mm
Single Fork Width 180mm
Overall Fork Width 570/695mm
Lowered Fork Height 86mm
Fixed Leg Length 875mm
Fixed Leg Width, Single Fixed Lenght 124mm
Inside Width Between Fixed Legs 1266/391mm
Outside Width Between Fixed Legs 514/639mm
Aisle Width for Pallets 1000*1200 Crossways 2452mm
Aisle Width for Pallets 800*1200 Lengthways 2432mm
Turning Radius 1570mm
Front Wheel Size, Number 80*70、4
Rear Wheel Size, Number 250*75、1
Balance Wheel Size, Number 115*55、2
Overall Length(With Pedal Unfolded) 2040(2460)
Overall Width 888mm
Lowered Mast Height 1991mm
Extended Mast Height 3397mm
The Charger 24v/30a
Lifting Motor 2.5kw
Driving Motor AC, 1.5kw
Steering Motor 0.2kw
Lift Speed, Unladen/laden 80/210mm/s
Lowering Speed, Unladen/laden 152/160mm/s
Driving Speed, Unladen/laden 5.2/5.5mm/s
Battery Voltage 24v/210ah
Battery(Dimensions) 790/210/458mm
Working Time of Fully Charged Batteries 5h
Service Weight 1090kg
