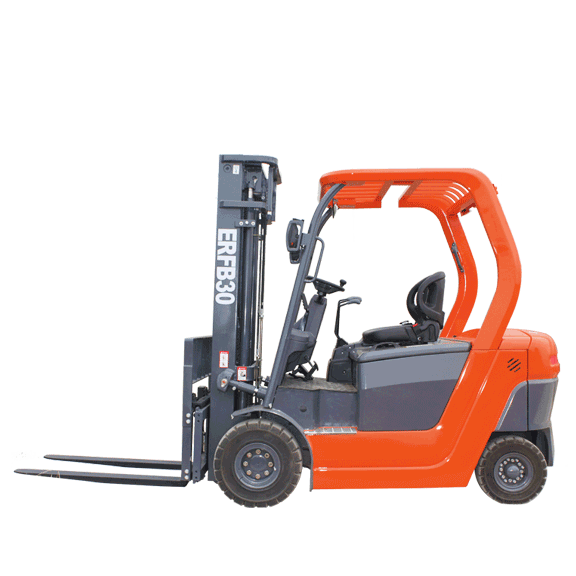

Electric Forklift—ERFB30

Specifications | Descriptions | Technical Parameters

Electric forklift with new design, more attractive and zero-pollution.
The reinforced roof frame made by superb steel makes the machine with superior anti roll ability and better protection.
Adopts famous brand ZIBO TORCH battery, SANTROLL controllers, BANGBU YELI cylinders makes the quality guaranteed.
Hydraulic Steering system makes better operation performance.
Professional XCE electronic control proportional technology system and BMS function can makes it change freely between lead acid battery and lithium battery.

Specifications

Rated Capacity

3000kg

Max.Lifting Height

3000mm

Load Center Distance

500mm

Descriptions

Electric forklift with new design, more attractive and zero-pollution.
The reinforced roof frame made by superb steel makes the machine with superior anti roll ability and better protection.
Adopts famous brand ZIBO TORCH battery, SANTROLL controllers, BANGBU YELI cylinders makes the quality guaranteed.
Hydraulic Steering system makes better operation performance.
Professional XCE electronic control proportional technology system and BMS function can makes it change freely between lead acid battery and lithium battery.

Technical Parameters

FEATURE

SIZE / DETAILS

Term No. ERFB30
Rated Capacity 3000kg
Load Center Distance 500mm
Power Mode Mu Lead Acid
Tyre Type Solid
Max.Lifting Height 3000mm
Free Lifting Height 145mm
Mast Tilt Angle Front/rear 6/12°
Overall Length(Fork Excluded) 2555mm
Overall Width 1270mm
Mast Height 2060mm
Overhead Guard Height 2200mm
Min.under Clearance 135mm
Wheel Base 1680mm
Min.turning Radius 2270mm
Traveling Speed Loaded/unloaded 16/17km/h
Lifting Speed Loaded/unloaded 330/450mm/s
Gradeability Loaded/unloaded 15/17%
Drive Motor Power 16.6kw
Pump Motor Power 13.5kw
Voltage 80v
Amphere 500Ah
