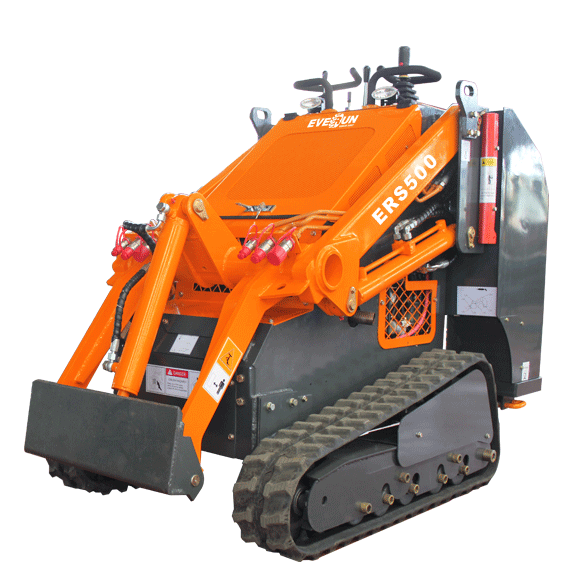

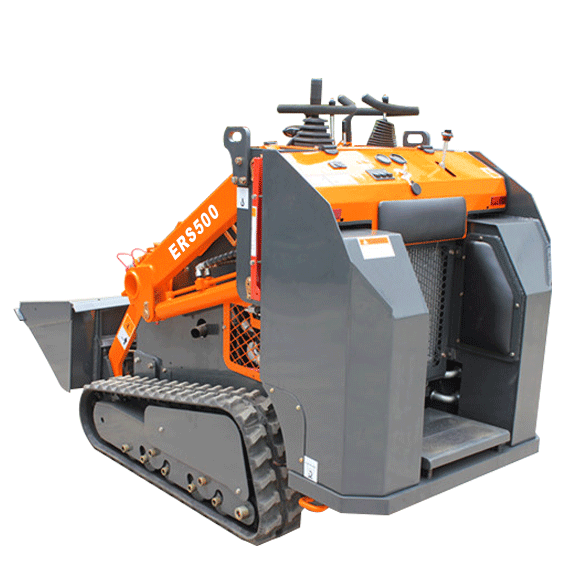

SKID STEER LOADER—ERS500

Specifications | Descriptions | Technical Parameters

With 13 years wheel loader exporting experience and under the help of our own customer, Qingdao Everun Machinery Co., Ltd established in beautiful coastal city Qingdao enjoying convenient transportation access.

Specifications

Maximum Engine Power

26kW

Operating Weight

10613kg

Standard Bucket Capacity

2.4m³

Descriptions

With 13 years wheel loader exporting experience and under the help of our own customer, Qingdao Everun Machinery Co., Ltd established in beautiful coastal city Qingdao enjoying convenient transportation access.

Technical Parameters

FEATURE

SIZE / DETAILS

Term No. ERS500
Max Working Height 2355mm
Max Pin Height 2122mm
Max Dump Height 1976mm
The Highest Point Discharge Distance 528mm
Bucket Swing Angle 43°
Bucket Unloading Angle 30°
Opening- Closing Angle 37°
Angle of Departure 30°
Total Height 1514mm
The Height from the Ground 230mm
Wheel Base 1000mm
No Bucket Length 230mm
Total Length (With Bucket) 2438mm
Total Width 980mm
Bucket Width 1150mm
Turning Radius 1507mm
Rated Power 24.4kw+5%
Rotating Speed 2800rpm
Noise ≤95Db
Hydraulic System 20mpa
Max Lifting Force 320kg
Bucket Capacity 0.15m³
Max Lifting Power 827Lb
Speed 6km/h
Chevron Tire 180*72*40
