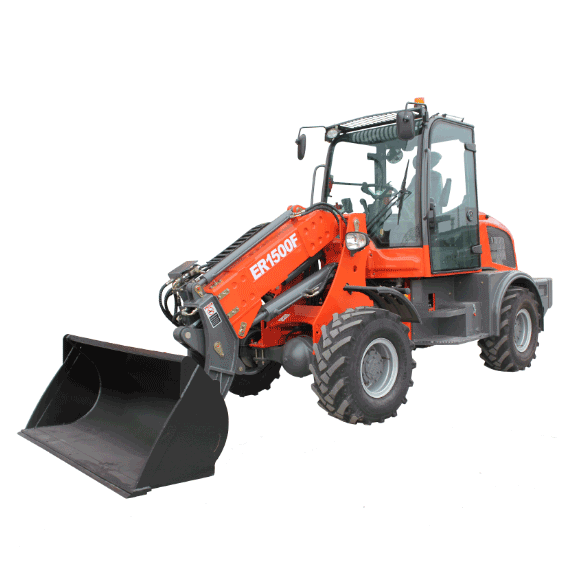

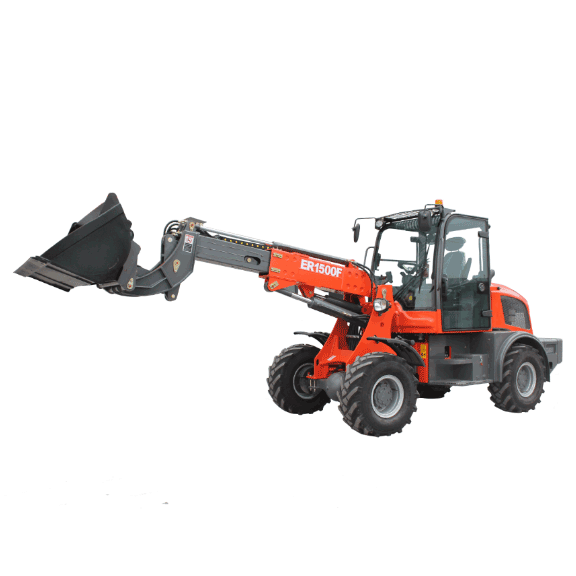

Telescopic Wheel Loader—ER1500F

Specifications | Descriptions | Technical Parameters

ER1500F is telescopic wheel loader with 1500kg loading capacity, it has good performance when working in farm, garden, stock farm, warehouse, factory, small project, construction, environment with terrain road and so on.
This model has good market in in Europe, Northern America, Australia, Southern America and so on.
It’s with higher manoeuvrability, higher security, bigger power, lower noise, more comfortable, more stability.

Specifications

Maximum Engine Power

36.8kw

Operating Weight

4000kg

Standard Bucket Capacity

0.52m³

Descriptions

At Everun, F stands for "Four wheel drive”, it belongs to ER4 series. Thanks to the articulated oscillating design and solid framework, it can not only have superior performance in agricultural and garden application, but also advanced for small constructions and terrain field application.

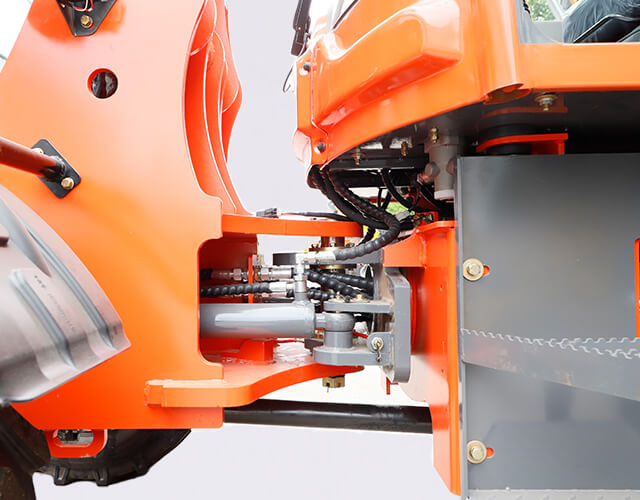

1-Everun articulated oscillating floating joint
The backbone of the Everun ER4 design: The legendary articulated oscillating floating joint. All four wheels remain in constant contact with the ground and the machine moves with maximum traction. In addition, the machine has unrivalled manoeuvrability.

2-High quality powder coating
Quality creates added value. The powder coating is a key feature of the Everun quality standard. In contrast to the conventional wet painting, it greatly increases the service life and is more efficient and also environmentally friendly in the process.

3-High shear forces from planetary axle
The drive via the planetary axle increases the torque on the wheel and thereby improves the shear force. Due to the optimal ratio between the shear force and machine capacity, you work flexibly and economically at the same time.

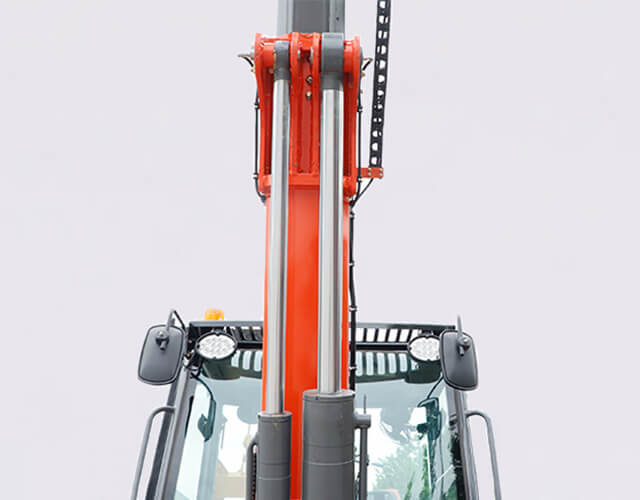

4-One bigger and stronger lift cylinder
Everun always installs strong lift cylinder in all ER4 series wheel loader models. This guarantees that the load distribution is always optimally transferred to the loading arm. In addition, the entire loading system gains stability. The size of the lift cylinder is adapted to the respective size of the machine.

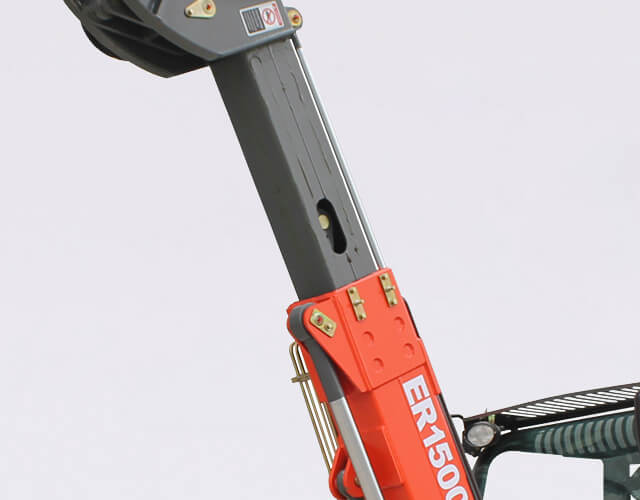

5-Sturdy telescopic arm
The telescopic boom is built to be sturdy and stable. The parallel motion takes place hydraulically. All important hydraulic lines are inside and are protected against external influences. The telescopic boom for Everun wheel loaders combines the advantages of an articulated machine with those of a telehandler. High overhead loading heights are therefore not a problem.

6-Stainless steel steering stops
At a full steering stop, the front and rear carriage of the machine touch. With Everun, this area is particularly well-protected by the stainless steel steering stops and there is no corrosion. This provides for value preservation!

7-Large selection of attachments
Use your machine as a multi-tool: you have a wide selection of attachments available for your Everun machine.

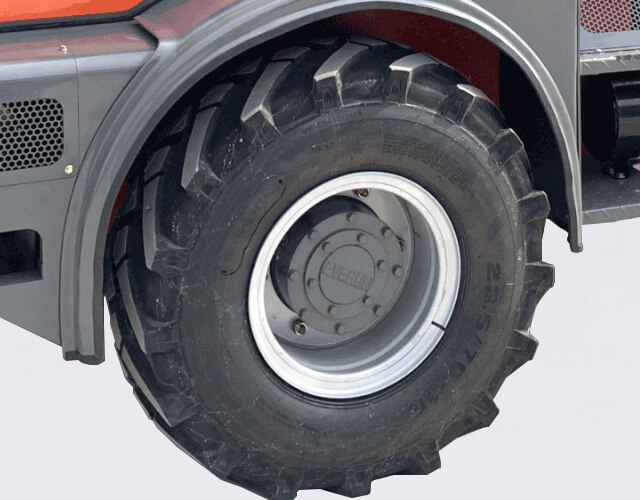

8-Large selection of tyres
The optimal tyres for every subgrade: you have a wide selection of different tyres available for your Everun machine.

9-ROPS & FOPS cabin with service port
The patented Everun spacious cabin meets European standard for ROPS & FOPS protection. The service port on floor is more convenient for maintenance.

10-Good maintenance accessibility for all ER4 series models
There is service hole inside the cabin, and the engine hood can be opened backward widely. This makes the engine, hydraulic system and electrical system easily accessible for our ER4 series models.

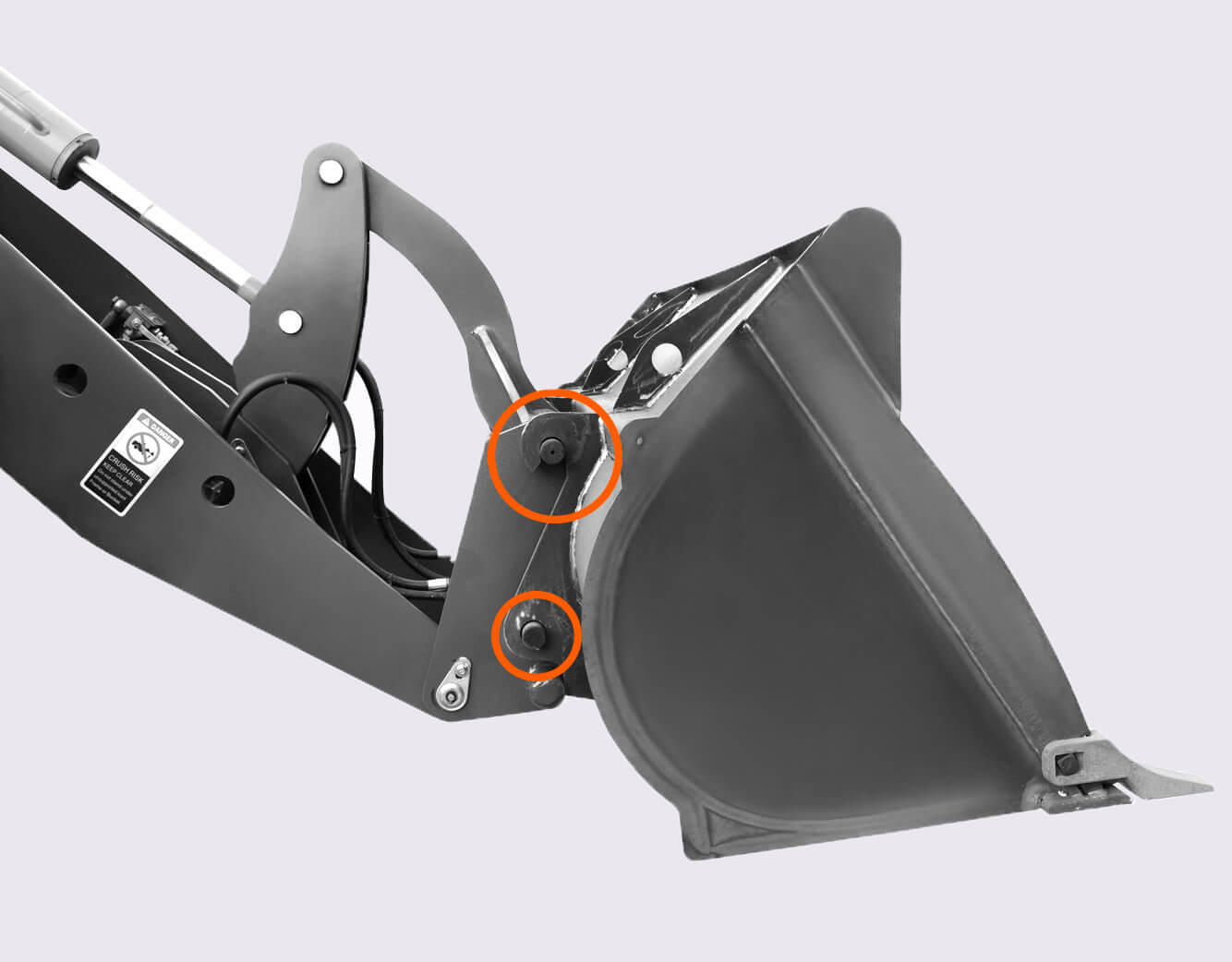

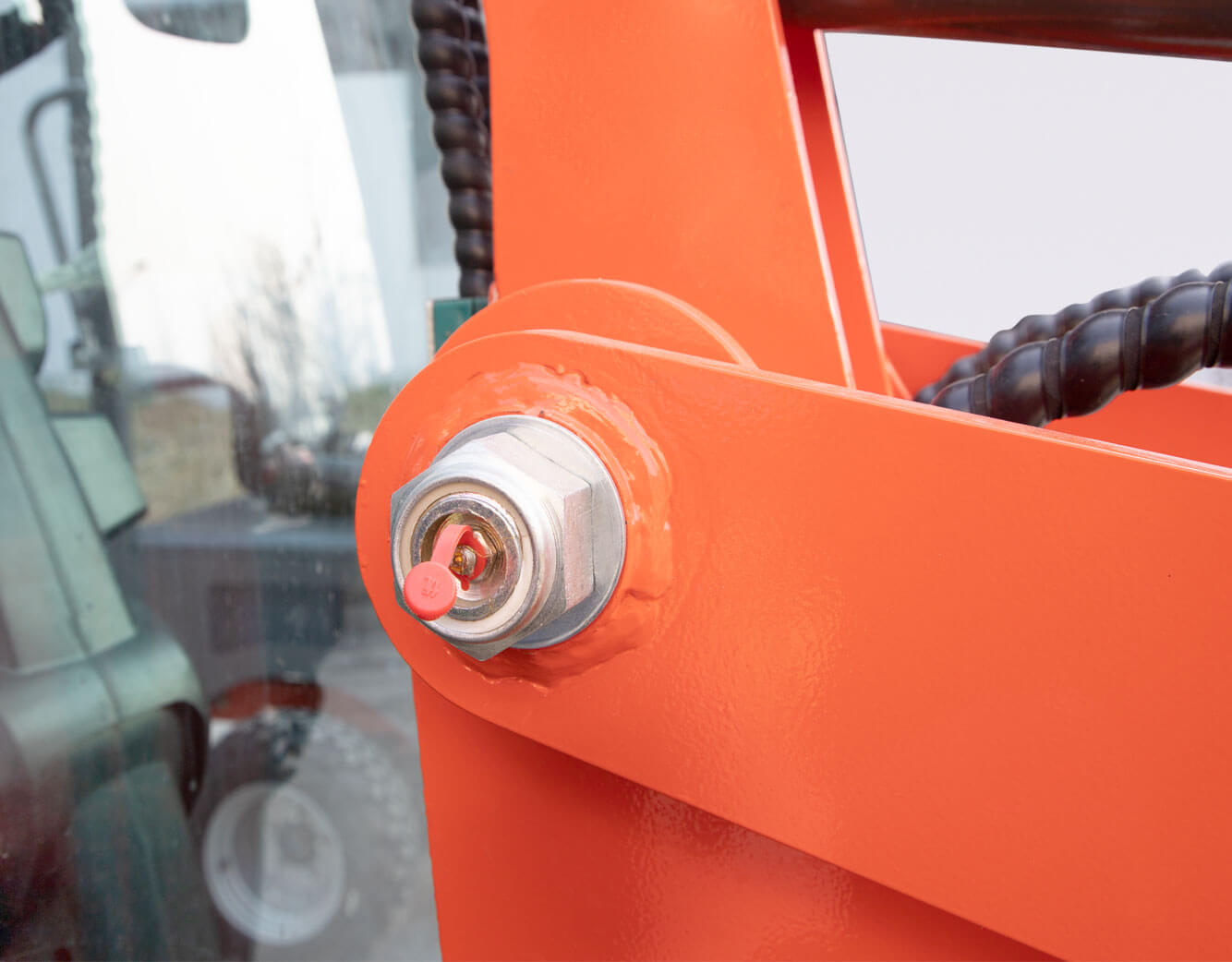

11-Easily accessible lubrication points
Regularly greasing all lubrication points of the machine is crucial for the proper and effective maintenance and therefore value retention of the machine. In order to save time and facilitate the work, the lubrication service points are always in an easily accessible position at Everun. Optionally, a central lubrication system is available that takes over the lubrication for you.

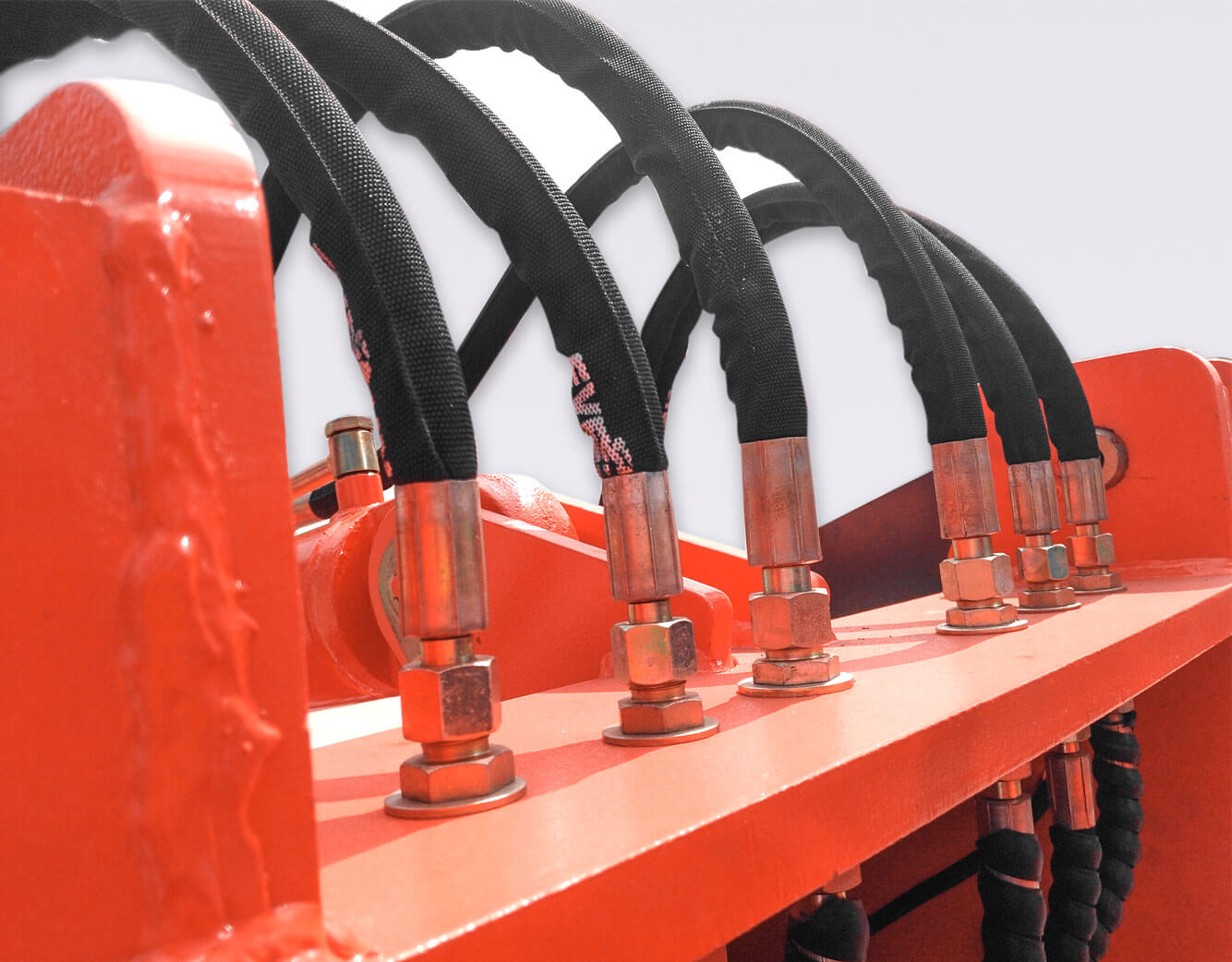

12-Short hydraulic hose lengths
Everun machines have short hydraulic hose lengths; the hoses are split in several places. If a hydraulic hose needs to be exchanged, the entire hose in the hydraulic circuit does not need to be exchanged, but rather just the affected part. This speeds up work enormously and saves money.

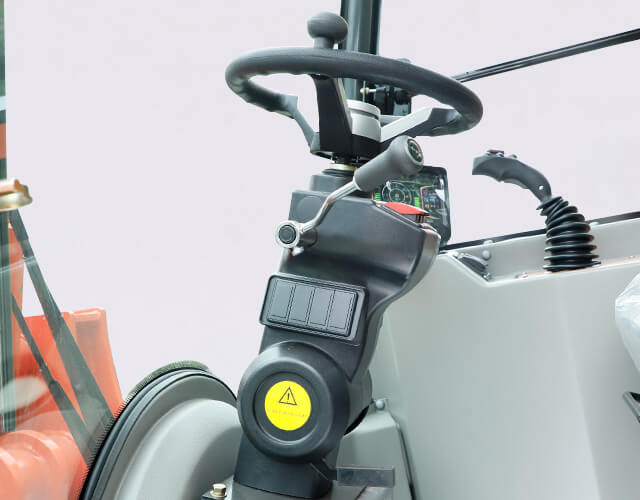

13-Adjustable steering column
The steering column can be individually adjusted according to the operator’s request. This ensures that every operator can work with the machine ergonomically and fatigue-free.

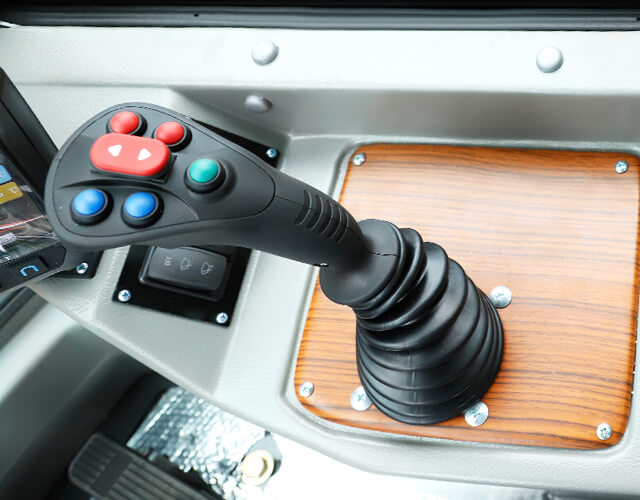

14-Ergonomic joystick
The joystick lies securely and comfortably in your hand. The control is sturdy and sensitive at the same time. In this way, you always have the machine and its key functions under control.

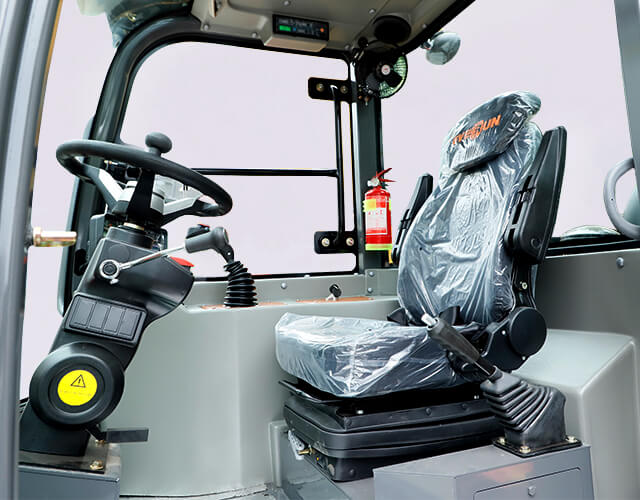

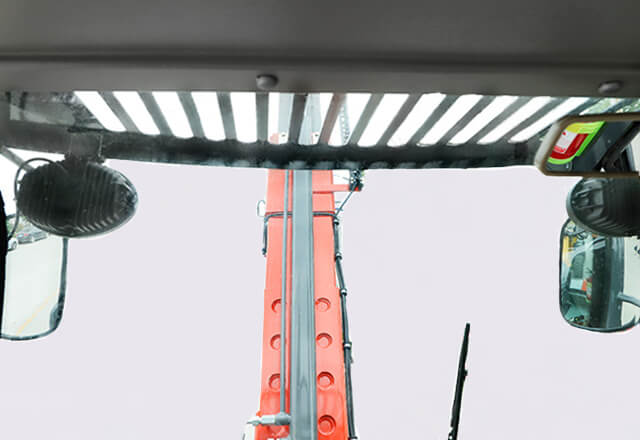

15-Good all-round visibility — ergonomic workplace
Plenty of legroom, clearly arranged instrument clusters, a comfortable operator’s seat and an optimal visibility of the attachment. A working area that motivates and fully supports the operator.

16-Pleasant working environment
The working environment in the cabin is excellent, thanks to an efficiently working heating and ventilation system with a fan, fresh air filter and well-placed air nozzles. With the comfort cab, air conditioning is available as an option.

17-Vibration-damped working area
Vibrations and impacts are absorbed by the machine. Your body is very well-protected and you also work for a longer time, relaxed and fatigue-free, and are therefore simply more focused.

18-New exhaust emission standard stage V — new engine technology
At Everun, we have already completed stages I to IV for pollutant reduction in the past few years. However, new and stricter limits in level V and subsequent levels still need to be met. However, because we would like to adapt our machines to the new legal situation and continue to develop our machines, we have put a great deal of developmental work and know-how into the new machine types

Technical Parameters

FEATURE

SIZE / DETAILS

Term No. ER1500F
Overall Working Weight 4000kg
Bucket Capacity By Default 0.52m³
Optional Buckets Availiable (CBM) - Please Mark All Sizes Available 0.8/1.0/1.3/1.5m³
Rated Load (Loading Capacity) 1500kg
Max.Tractive Force 33kn
Max.Breakout Force 28kn
Max.Gradeability 28°
Max. Dumping Height 3155mm
Max.Lifting Height 3813mm
Dumping Distance 1449mm
Overall Dimension (L×W×H) 7060*2150*3096mm
Engine Model by Default Xichai A498BT1
Number of Cylinder 4
Rated Power 36.8kw
