Telescopic Wheel Loader—ER2500F

Specifications | Descriptions | Technical Parameters

Long reach boom with 2500kg loading capacity.
High maneuverability, stability and lifting force.
Option for EURO3/5 and us Tier4 engine.
For agricultural and construction.

Specifications

Maximum Engine Power

55kw

Operating Weight

2500kg

Standard Bucket Capacity

0.67m³

Descriptions

At Everun, F stands for "Four wheel drive”, it belongs to ER4 series. Thanks to the articulated oscillating design and solid framework, it can not only have superior performance in agricultural and garden application, but also advanced for small constructions and terrain field application.

1-Everun articulated oscillating floating joint
The backbone of the Everun ER4 design: The legendary articulated oscillating floating joint. All four wheels remain in constant contact with the ground and the machine moves with maximum traction. In addition, the machine has unrivalled manoeuvrability.

2-High quality powder coating
Quality creates added value. The powder coating is a key feature of the Everun quality standard. In contrast to the conventional wet painting, it greatly increases the service life and is more efficient and also environmentally friendly in the process.

3-High shear forces from planetary axle
The drive via the planetary axle increases the torque on the wheel and thereby improves the shear force. Due to the optimal ratio between the shear force and machine capacity, you work flexibly and economically at the same time.

4-One bigger and stronger lift cylinder
Everun always installs strong lift cylinder in all ER4 series wheel loader models. This guarantees that the load distribution is always optimally transferred to the loading arm. In addition, the entire loading system gains stability. The size of the lift cylinder is adapted to the respective size of the machine.

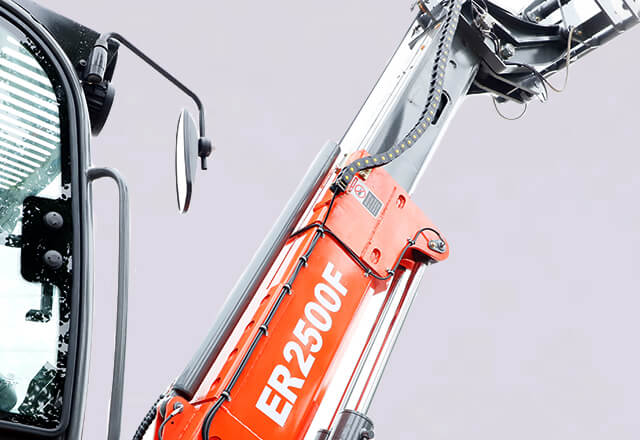

5-Sturdy telescopic arm
The telescopic boom is built to be sturdy and stable. The parallel motion takes place hydraulically. All important hydraulic lines are inside and are protected against external influences. The telescopic boom for Everun wheel loaders combines the advantages of an articulated machine with those of a telehandler. High overhead loading heights are therefore not a problem.

6-Stainless steel steering stops
At a full steering stop, the front and rear carriage of the machine touch. With Everun, this area is particularly well-protected by the stainless steel steering stops and there is no corrosion. This provides for value preservation!

7-Large selection of attachments
Use your machine as a multi-tool: you have a wide selection of attachments available for your Everun machine.

8-Large selection of tyres
The optimal tyres for every subgrade: you have a wide selection of different tyres available for your Everun machine.

9-ROPS & FOPS cabin with Maintenance access

10-Good maintenance accessibility for all ER4 series models
There is service access inside the cabin, and the engine hood can be opened backward widely. This makes the engine, hydraulic system and electrical system easily accessible for our ER4 series models.

11-Easily accessible lubrication points
Regularly greasing all lubrication points of the machine is crucial for the proper and effective maintenance and therefore value retention of the machine. In order to save time and facilitate the work, the lubrication service points are always in an easily accessible position at Everun. Optionally, a central lubrication system is available that takes over the lubrication for you.

12-Short hydraulic hose lengths
Everun machines have short hydraulic hose lengths; the hoses are split in several places. If a hydraulic hose needs to be exchanged, the entire hose in the hydraulic circuit does not need to be exchanged, but rather just the affected part. This speeds up work enormously and saves money.

13-Adjustable steering column
The steering column can be individually adjusted according to the operator’s request. This ensures that every operator can work with the machine ergonomically and fatigue-free.

14-Ergonomic joystick
The joystick lies securely and comfortably in your hand. The control is sturdy and sensitive at the same time. In this way, you always have the machine and its key functions under control.

15-Good all-round visibility — ergonomic workplace
Plenty of legroom, clearly arranged instrument clusters, a comfortable operator’s seat and an optimal visibility of the attachment. A working area that motivates and fully supports the operator.

16-Pleasant working environment
The working environment in the cabin is excellent, thanks to an efficiently working heating and ventilation system with a fan, fresh air filter and well-placed air nozzles. With the comfort cab, air conditioning is available as an option.

17-Vibration-damped working area ( option)
Vibrations and impacts are absorbed by the machine. Your body is very well-protected and you also work for a longer time, relaxed and fatigue-free, and are therefore simply more focused.

18-New exhaust emission standard stage V — new engine technology
At Everun, we have already completed stages I to IV for pollutant reduction in the past few years. However, new and stricter limits in level V and subsequent levels still need to be met. However, because we would like to adapt our machines to the new legal situation and continue to develop our machines, we have put a great deal of developmental work and know-how into the new machine types.

19-Digital display & diagnostic and analytic system
With the digital display, you obtain an overview of your machine. In addition to standard displays like temperature, tank filling, or operating hours, active functions are also displayed in the cab, like activated electrical functions, the continuous operation of the 3rd control circuit. Using the Everun diagnostic and analytic system, it is possible to quickly and clearly assess many functions, such as the driving function, telescopic functions, the 3rd and 4th control circuit, the engine data, as well as the electrical functions. Error messages in the display immediately notify the operator of possible failures and make a rapid response possible. Thanks to the exact designation of the error number, the dealer can come to the machine prepared and with the right spare parts. The subsequent error analysis by trained dealers simplifies further diagnosis and troubleshooting. This saves time, money and nerves.

20-Trailer operation
Thanks to the optional trailer coupling, all Everun wheel and telescopic wheel loaders can pull a trailer with a total weight up to 18 t – depending on the model. An automatic trailer coupling is available (fixed or height adjustable), as are a height-adjustable ball trailer coupling and a “hitch” trailer coupling.
Please note that product availability can vary from country to country. It is possible that information / products may not be available in your country. Photos may depict options. Subject to change without notice. Errors and omissions are reserved. The contractual agreement is expressly decisive.

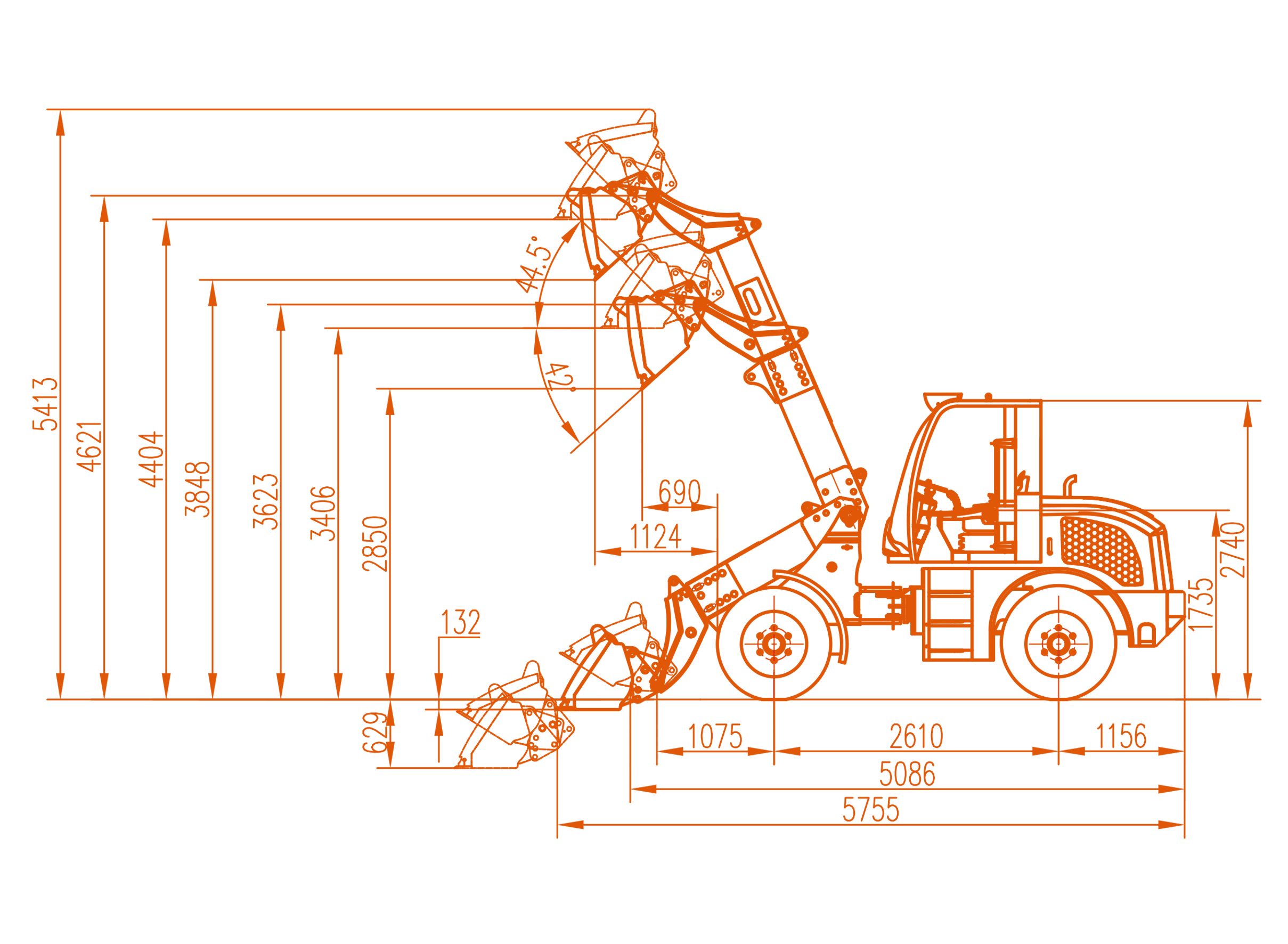

Technical Parameters

FEATURE

SIZE / DETAILS

tem No. ER2500F
Bucket Capacity 0.67m³
Loading Capacity 2500kg
Max. Driving Speed(I/II) 9/21km/h
Fuel Consumption Ration 240g/km·h
Engine Model XICHAI 4DX21-72
Engine Power 53kw
Rated Speed 2400r/min
Service Brake Air Assist Disc Brake on 4 Wheels
Net Weight 5300kg
Lifting Time 7s
Working Pressure 17mpa
Wheel Base 2610mm
Breakout Force 30kn
Tyre 16/70-20
Oil Flow 85L/min
