· European hydrostatic transmission system (HST + 2 axles).
· Limited-slip differential function for enhanced traction.

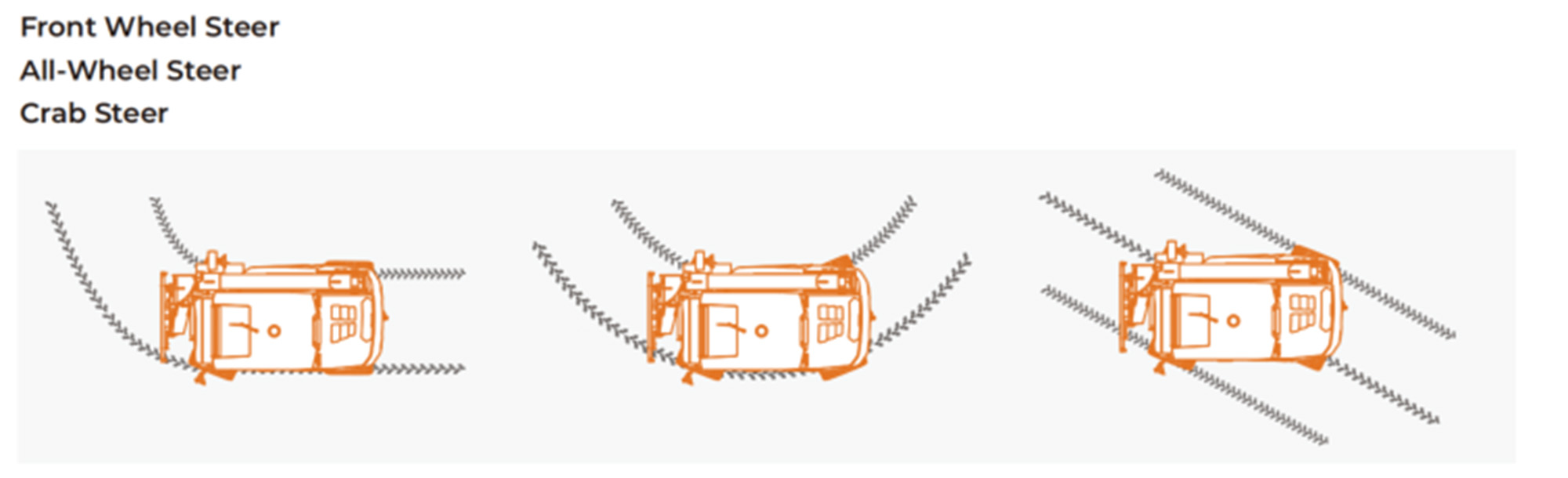

· Innovative 3-type steering for a smaller turning radius.
· Four-wheel drive capability, suitable for various terrains.
· Compact vehicle size for superior flexibility.

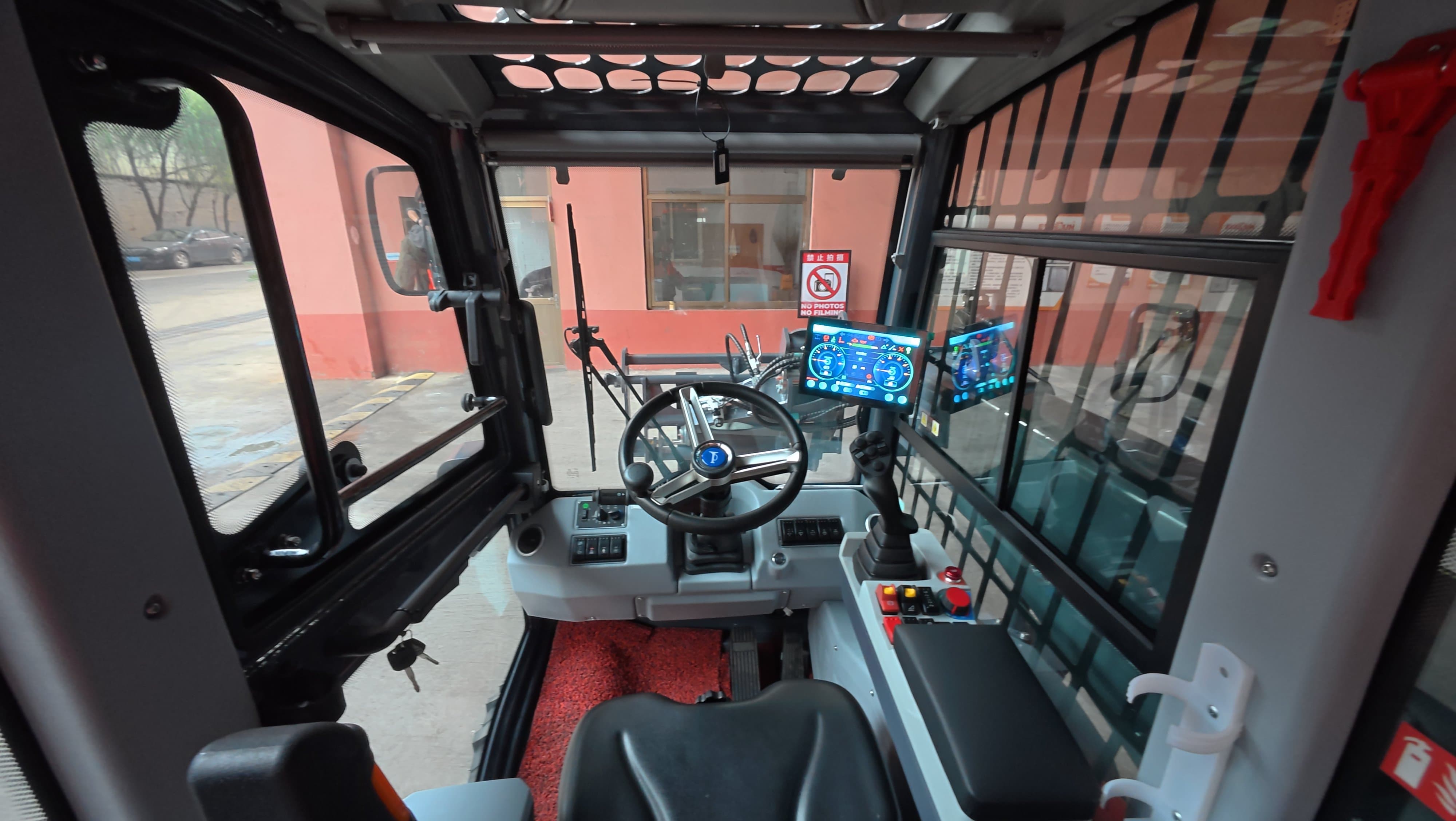

· Modern design with a streamlined appearance and luxury cabin interiors.
Engine Rated Power
32.4kWMax. Lifting Height
4530mmMax load Capacity

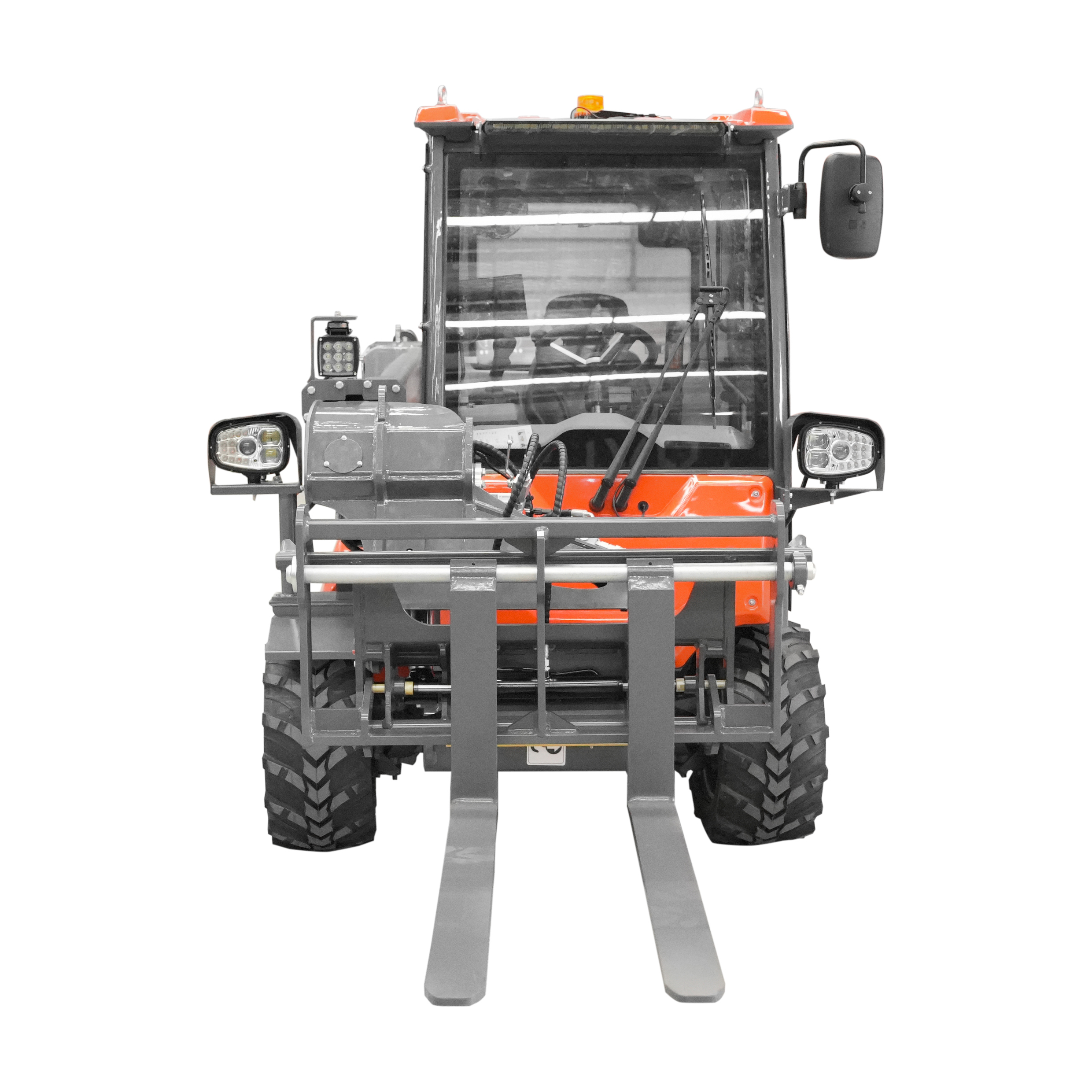

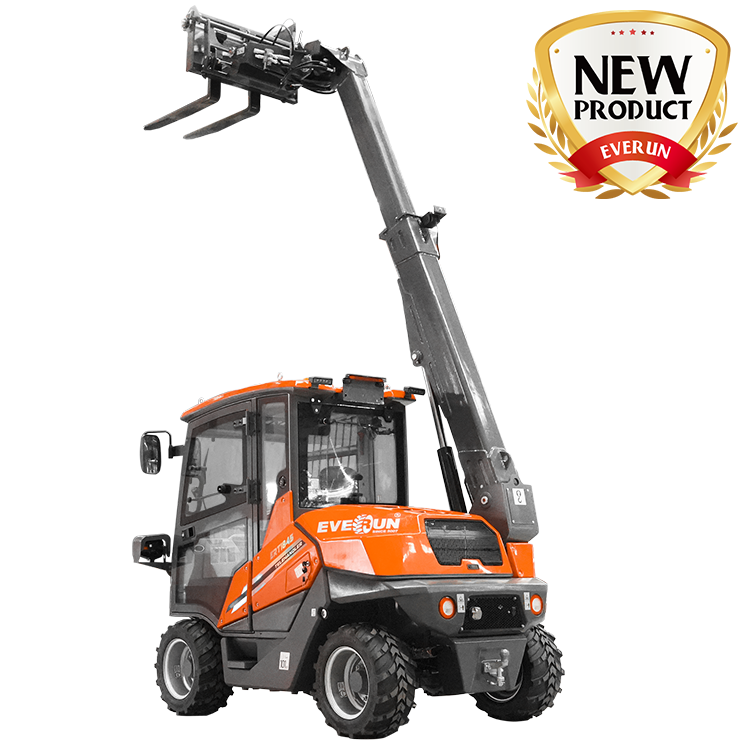

1800kgERT1845 With Standard Forks(2T-1070mm), Yanmar 3TNV86CT Engine(StageV/ EPA4), Euro Quick Hitch, Rexroth Hydrostatic Transmission System, Dual Wet Brake Axles, Rexroth Electric Proportional Joystick, Electric Gear Shift, Overload Alarm System, Limited-slip Differential, LED Working Lights, Electric Parking Brake, Floating Function, Electric Tipping Cabin, Button Start, Bluetooth Key, Hand Throttle, Luxury Cabin Interiors, HD Display, Backward Camera, Comfortable Seat, 26×11.5-14 Tyre.
1. Rexroth Hydrostatic transmission system
2. Limited Slip Differential (LSD)

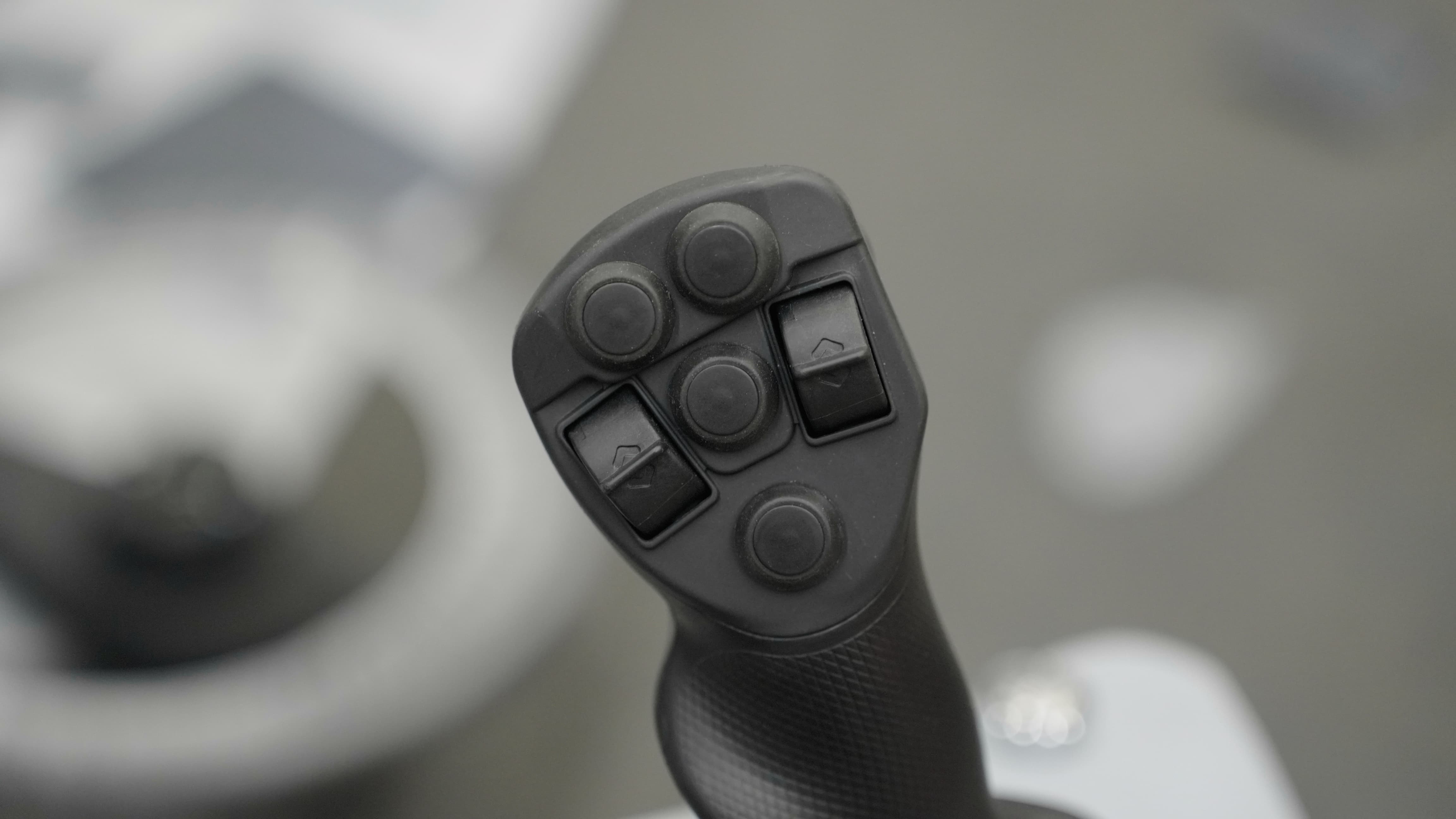

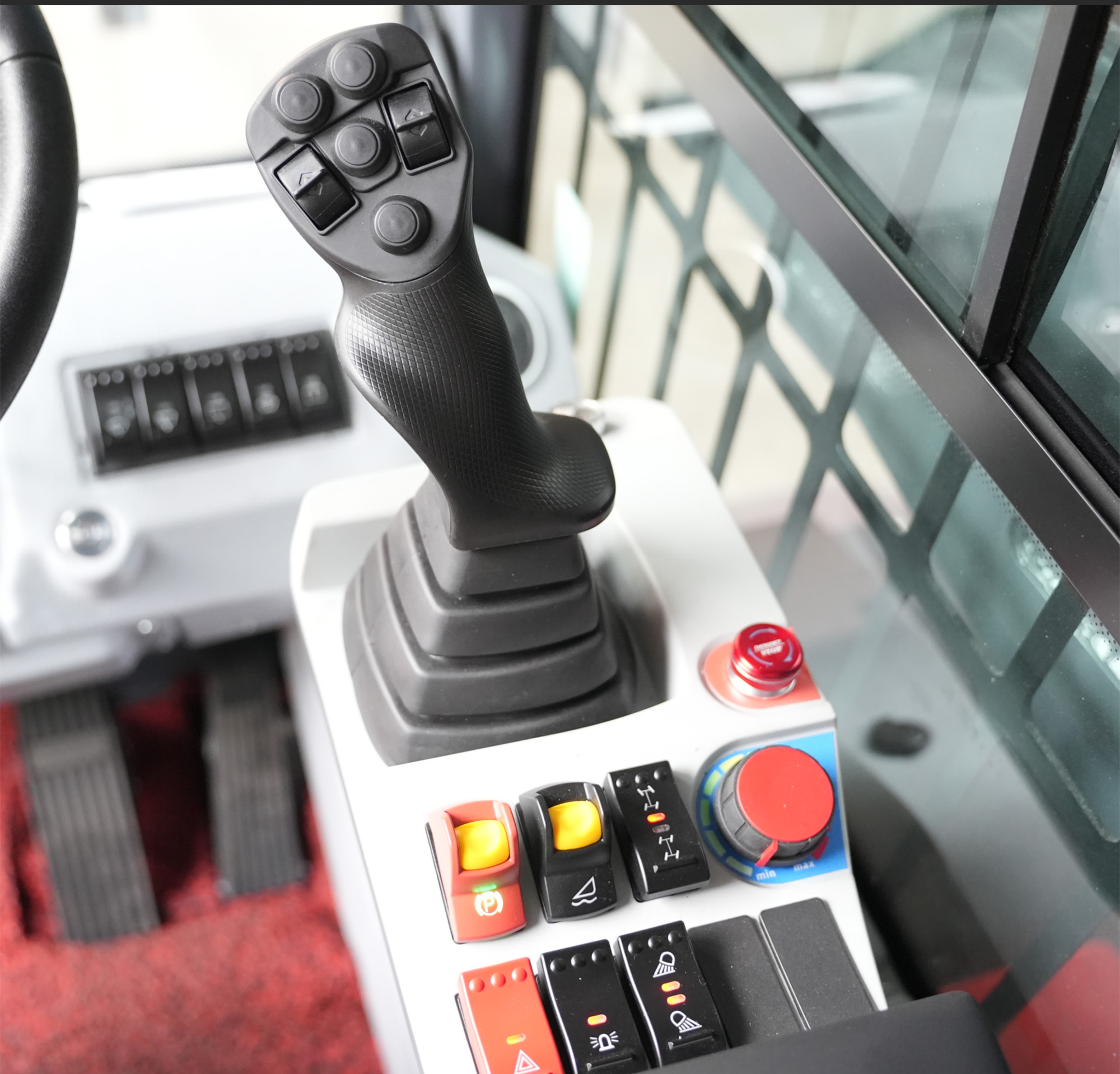

3. Rexroth Electric Proportional Joystick

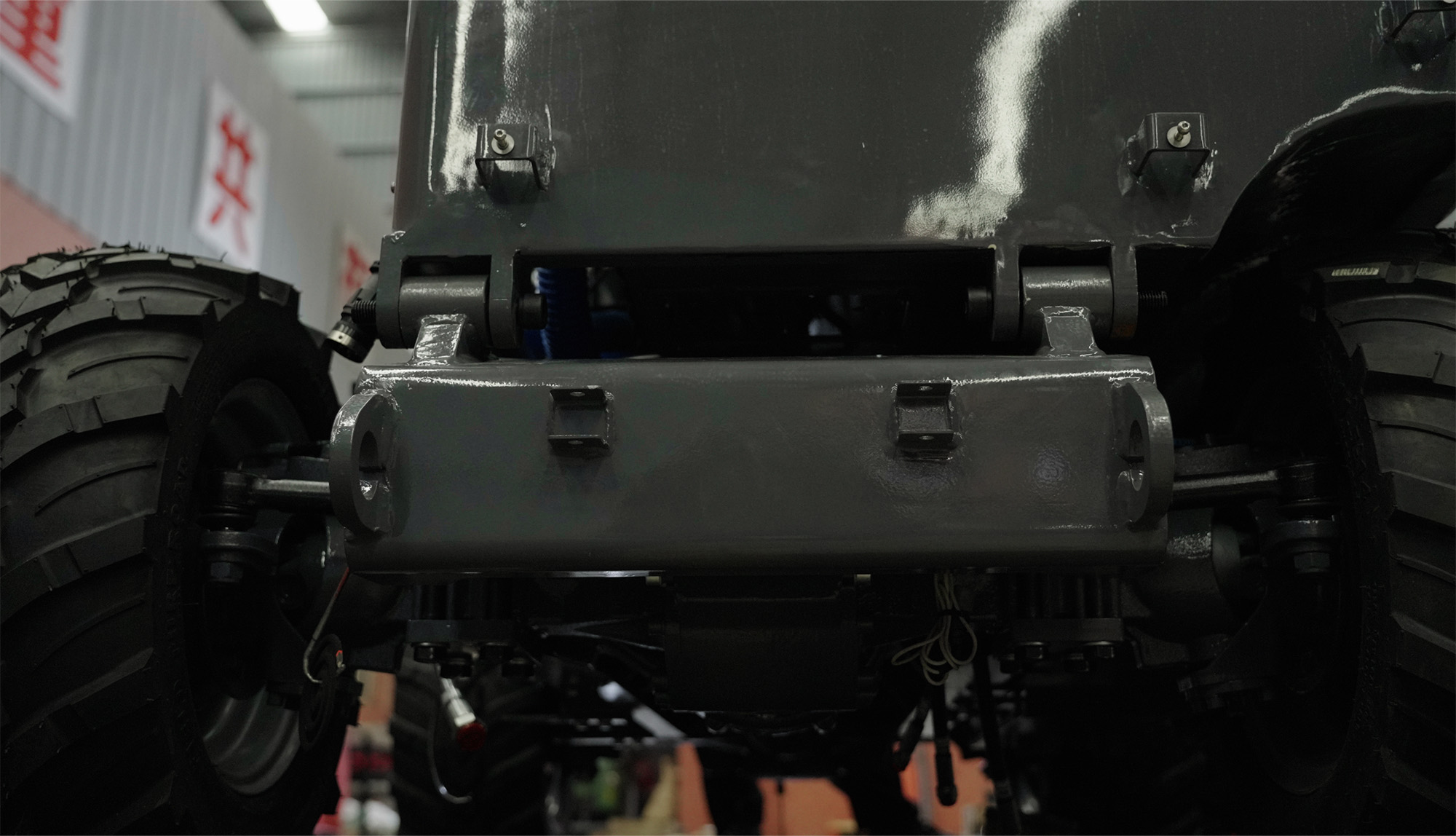

4. Wet Brake Axlex

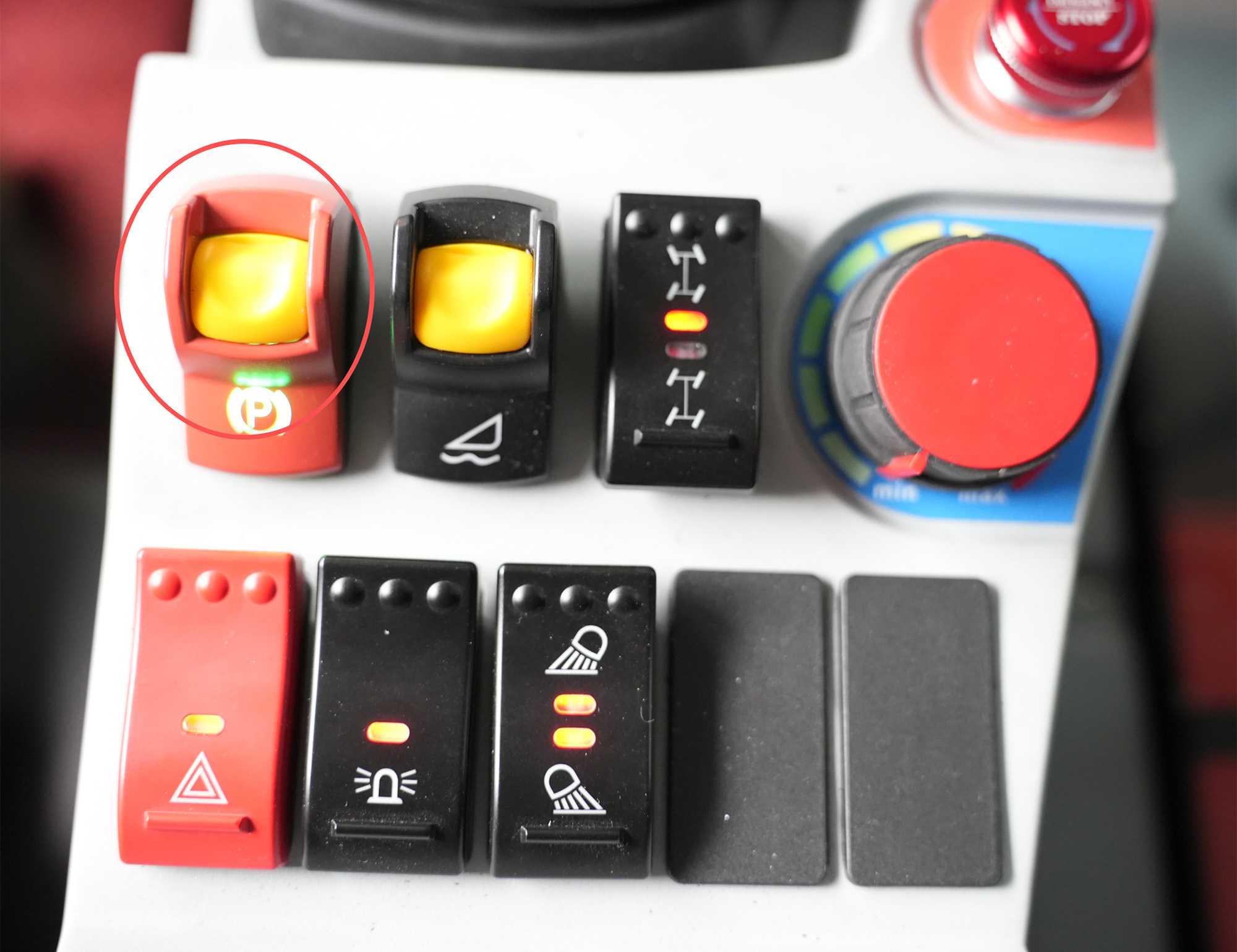

5. Electric Parking Brake

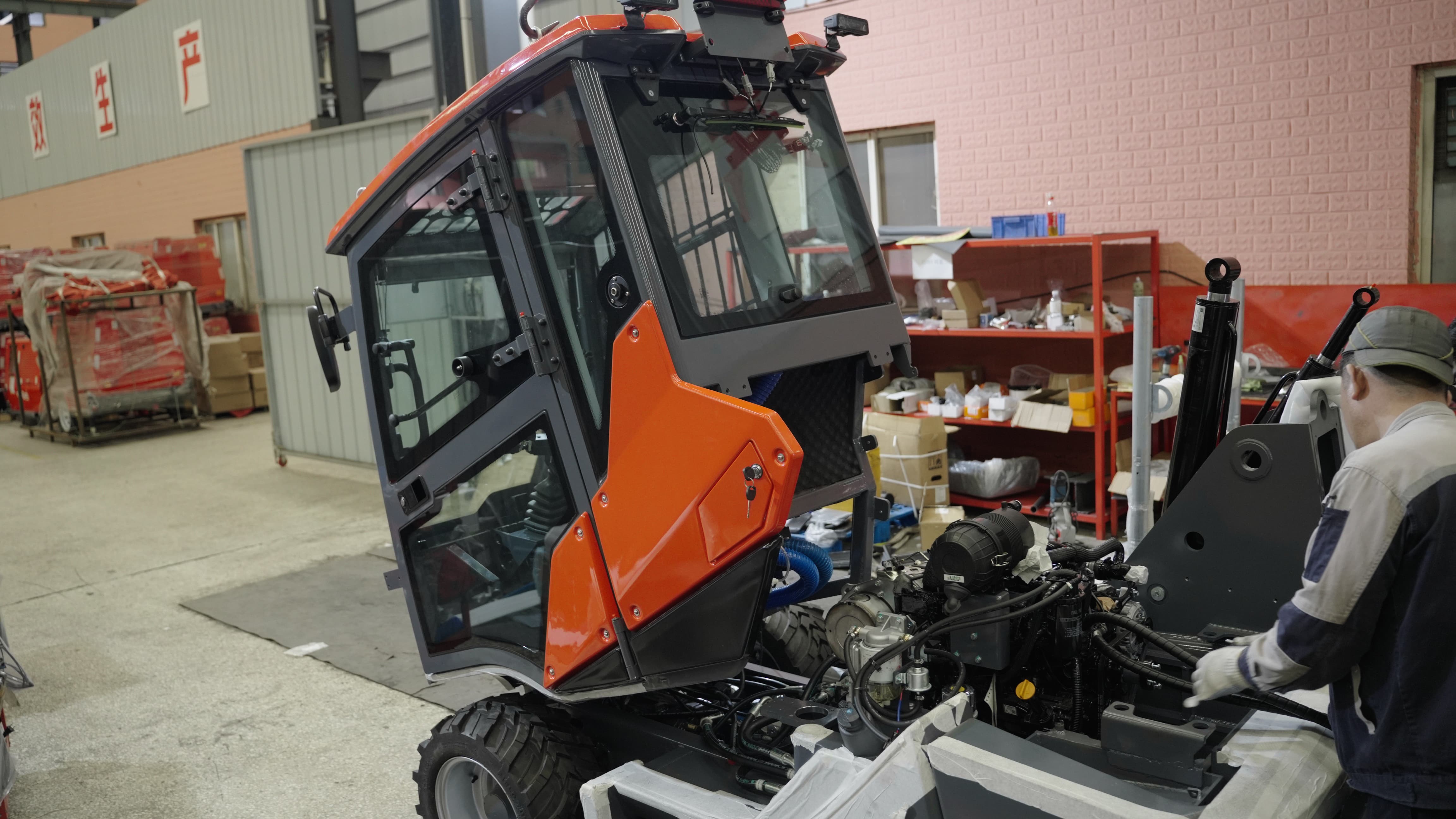

6. Electric Tipping Cabin
7. For enhanced operator well-being, the joystick is integrated into the armrest, which can be comfortably adjusted via an electric control.
8. 4W+ 4WS

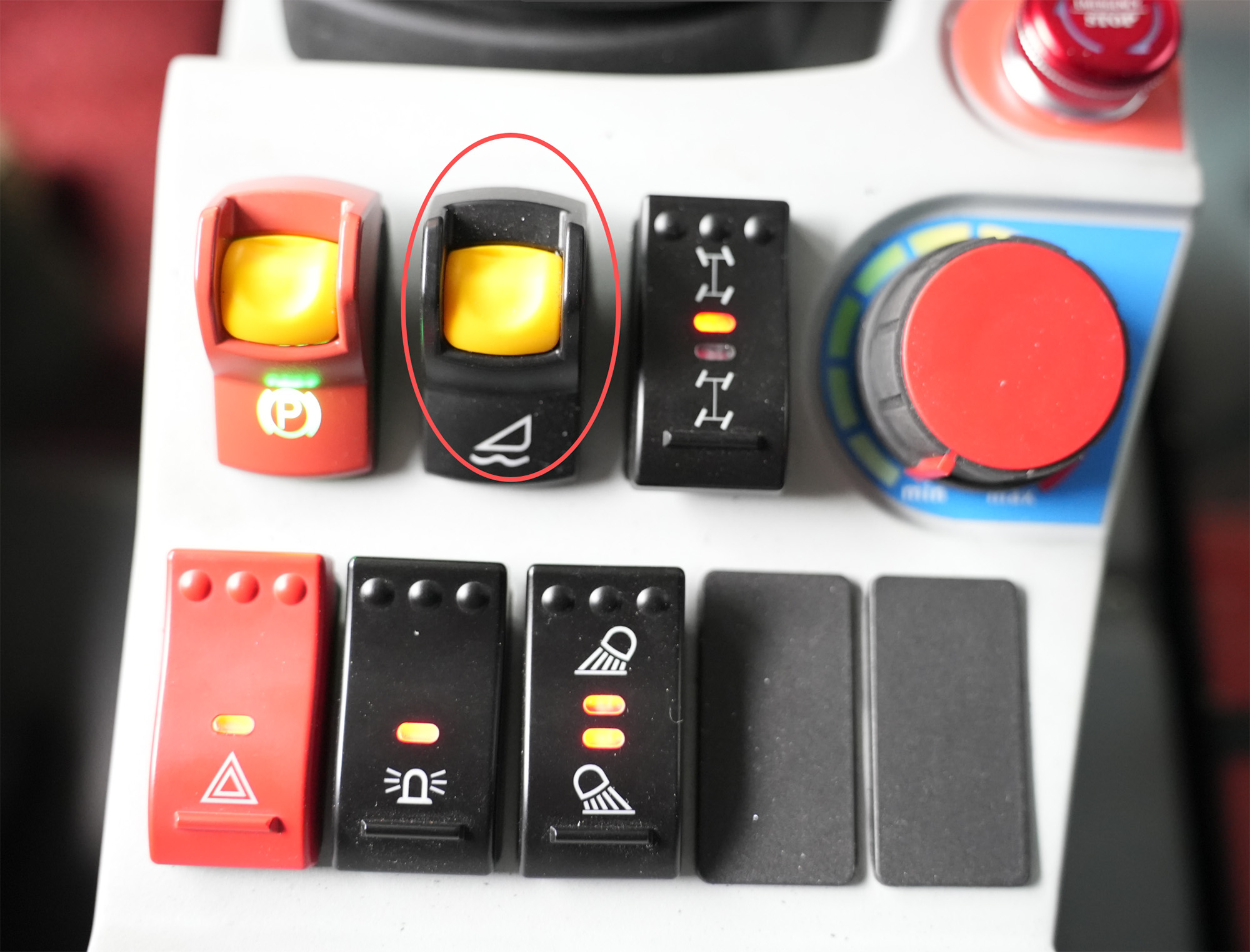

9. Electric Floating Function

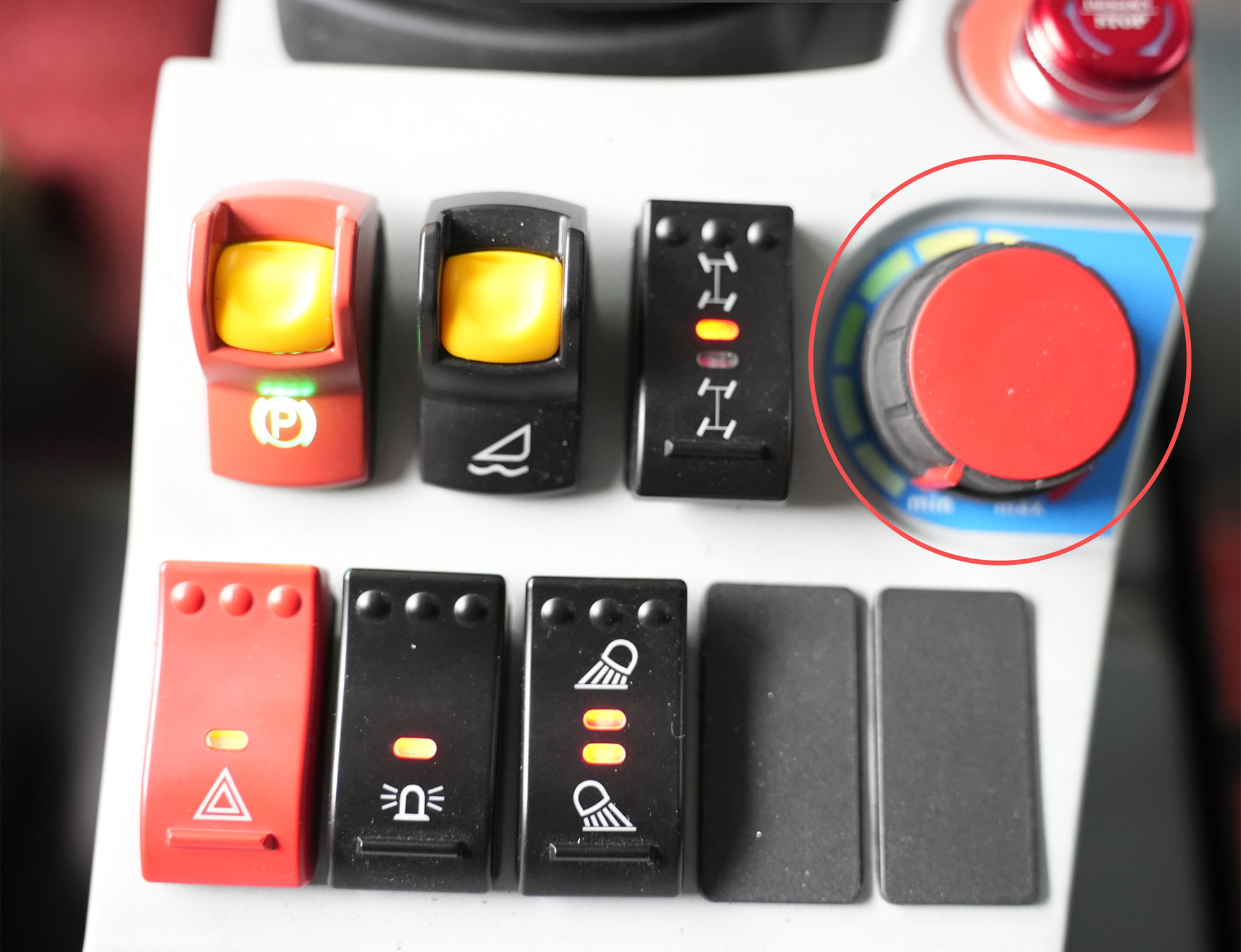

10. Hand Throttle

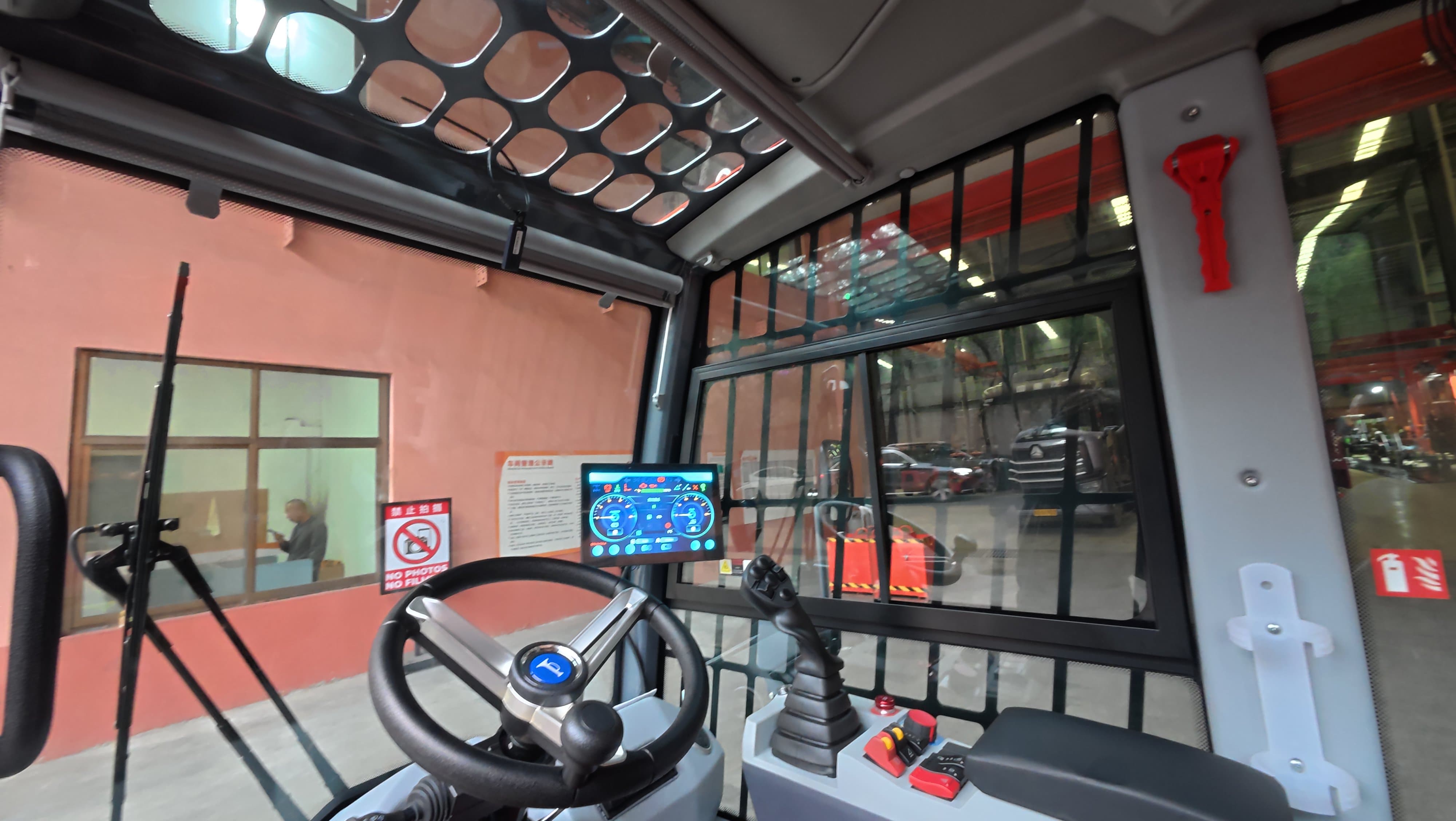

11. Top glass for front window, have a better view to check the front boom work.
| Max. Loading Capcity (tipping load) | 1800kg |
| Net Weight | 3300kg |
| Overall Dimension (L×W×H) | 3007×1780×2104mm |
| Max. Lifting Height of shovel pivot pin | 4530mm |
| Wheelbase | 1720mm |
| Min. Turning Radius(Outside) | 3033mm |
| Engine Manufacturer | YANMAR |
| Engine Model | 3TNV86CT-DTY |
| Displacement | 1568ccm |
| Engine Power | 32.4(44)kW(HP) |
| Type of Coolant | Water cooling |
| Number of Cylinders | 3 |
| Rated Speed | 2300 |
| Transmission Type | HST+2 Axles |
| Gear Shift | Electric |
| Max Driving speed | 20km/h |
| Drive Pump Rated Pressure | 350bar |
| Working Pump Rated Flow | 36L/min |
| Working Pump Rated Pressure | 230bar |
| Steering Type | 3 type steering |
| Min. Turning Radius(Inner/outer) | 1670/3300mm |
| Service Brake | Wet brake |
| Parking Brake | Electric parking brake |
| Tire Specifications | 26×11.5-14 |
