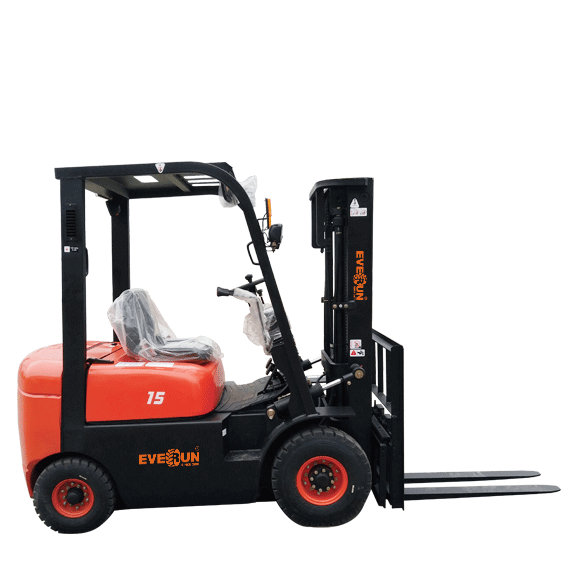

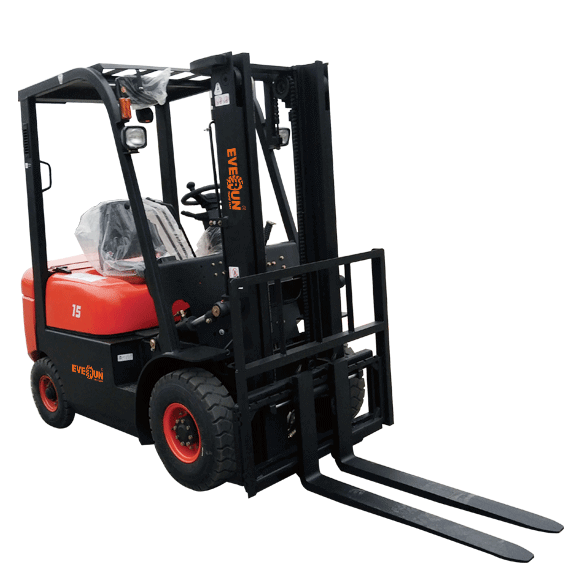

Diesel Forklift—ERDF15

Specifications | Descriptions | Technical Parameters

Everun was starting the wheel loader exporting trade in 2007. Under the help of our customer, Qingdao Everun Machinery Co., Ltd established in the beautiful coastal city Qingdao enjoying convenient transportation access.

Specifications

Rated Capacity

1500kg

Load Center

500mm

Power Type

Diesel

Descriptions

Everun was starting the wheel loader exporting trade in 2007. Under the help of our customer, Qingdao Everun Machinery Co., Ltd established in the beautiful coastal city Qingdao enjoying convenient transportation access.

Technical Parameters

FEATURE

SIZE / DETAILS

Term No. ERDF15
Rated Capacity 1500kg
Load Center 500mm
Power Type Diesel
Transmission Hydraulic
Lifting Height 3000mm
Free Lifting Height 70mm
Turning Radius 2200mm
Overall Length 3345mm
Overall Width 1085kg
Overall Height (Mast Lowered) 1995mm
Overall Height(Mast Raised) 4030mm
Overall Height(Overhead Guard) 2085mm
Fork Length 1070mm
Fork Width 122mm
Fork Thickness 40mm
Max. Driving Speed(With/Without Load) 14.5/15km/h
Max. Lifting Speed(With Load) 500mm/s
Max. Traction(With/Without Load) 14.4/8.4kn
Gradeability(With Qithout Load) 15/20%
Tilting Angles(Forward/Backward) 6/12°
Service Weight 2650kg
Engine Model China Engine
Power 30kw
Rated Speed 2600rpm
Displacement 2.07L
No. Of Cylinder 4
Front Overhang 430mm
Wheel Base 1450mm
Front Tread 890mm
Rear Tread 920mm
Front Tire 6.50-10-10
Rear Tire 5.00-8-10
