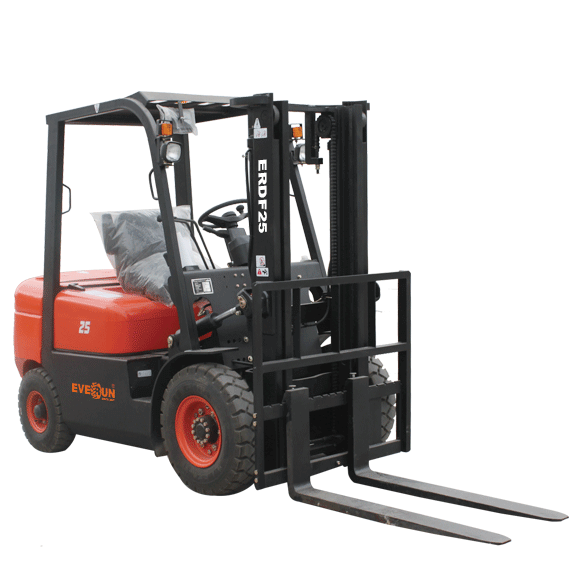

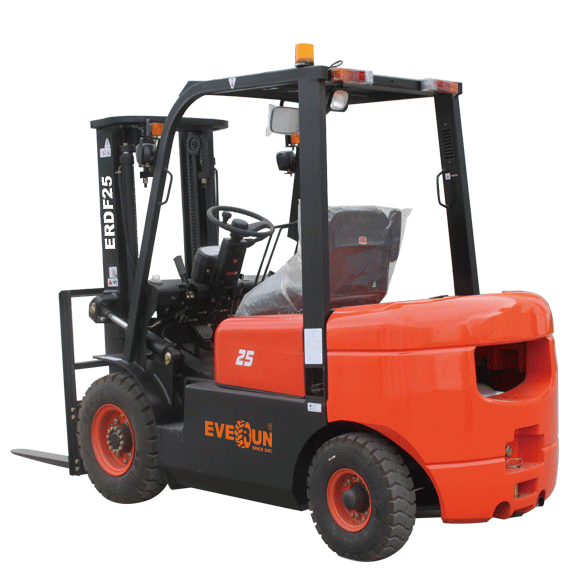

Diesel Forklift—ERDF25

Specifications | Descriptions | Technical Parameters

With 13 years wheel loader exporting experience and under the help of our own customer, Qingdao Everun Machinery Co., Ltd established in beautiful coastal city Qingdao enjoying convenient transportation access.

Specifications

Maximum Engine Power

36.8kW

Rated Capacity

2500kg

Lifting Height

3000mm

Descriptions

With 13 years wheel loader exporting experience and under the help of our own customer, Qingdao Everun Machinery Co., Ltd established in beautiful coastal city Qingdao enjoying convenient transportation access.

Technical Parameters

FEATURE

SIZE / DETAILS

Term No. ERDF25
Rated Capacity 2500kg
Load Center 500mm
Transmission Auto Transmission
Lifting height 3000mm
Free Lifting Height 60mm
Turning Radius 2450mm
Overall Length 3605mm
Overall Width 1160mm
Overall Height (Mast Lowered) 2095mm
Overall Height (Mast Raised) 4080mm
Overall Height (Overhead Guard) 2095mm
Max.Lifting Speed (With Load) 400mm/s
Max.Traction(With/without Load) 15/10kn
Gradeability (With/without Load) 15/20%
Max.Driving Speed (With/without Load) 17/19km/h
Tilting Angles (Forward/Backward) 6/12°
Power Type Diesel
Fork Length 1220mm
Fork Width 122mm
Fork Thickness 40mm
Service Weight 3600kg
Engine Model China Engine
Engine Power 36.8kw
Rated Speed 2500r/min
Displacement 2.67L
No.of Cylinder 4
Front Overhang 451mm
Wheel Base 1640mm
Front Tread 970mm
Rear Tread 970mm
Front Tire 7.00-12
Rear Tire 6.00-9
