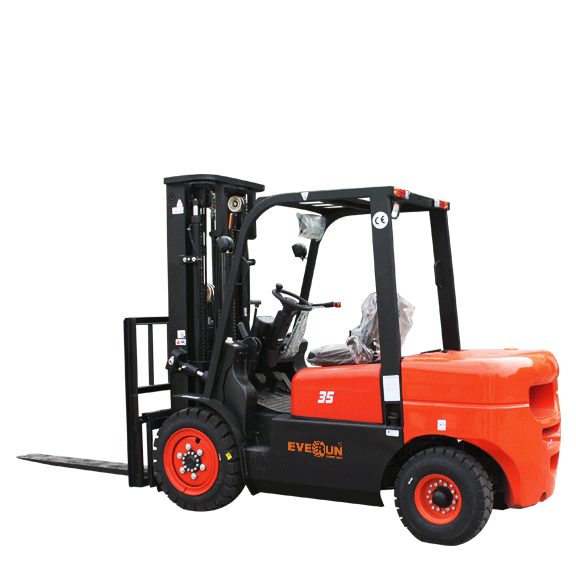

Diesel Forklift—ERDF35

Specifications | Descriptions | Technical Parameters

With 13 years wheel loader exporting experience and under the help of our own customer, Qingdao Everun Machinery Co., Ltd established in beautiful coastal city Qingdao enjoying convenient transportation access.

Specifications

Rated Capacity

3500kg

Load Center

500mm

Power Type

Diesel

Descriptions

With 13 years wheel loader exporting experience and under the help of our own customer, Qingdao Everun Machinery Co., Ltd established in beautiful coastal city Qingdao enjoying convenient transportation access.

Technical Parameters

FEATURE

SIZE / DETAILS

Term No. ERDF35
Rated Capacity 3500kg
Load Center 500mm
Power Type Diesel
Transmission Hydraulic
Lifting Height 3000mm
Free Lifting Height 80mm
Turning Radius 2500mm
Overall Length 3800mm
Overall Width 1230kg
Overall Height(Mast Lowered) 2110mm
Overall Height(Mast Raised) 4270mm
Overall Height(Overhead Guard) 2110mm
Fork Length 1220mm
Fork Width 125mm
Fork Thickness 50mm
Max. Driving Speed(With/Without Load) 17/19km/h
Max. Lifting Speed (With Load) 375mm/s
Max. Traction(With/Without Load) 16/11kn
Gradeability(With Without Load) 15/20%
Tilting Angles(Forward/Backward) 6/12°
Service Weight 4580kg
Engine Model CHINA ENGINE
Power 39kw
Rated Speed 2650rpm
Displacement 2.67L
No. Of Cylinder 4
Front Overhang 465mm
Wheel Base 1700mm
Front Tread 1000mm
Rear Tread 970mm
Front Tire 28*9-15
Rear Tire 6.50-10
