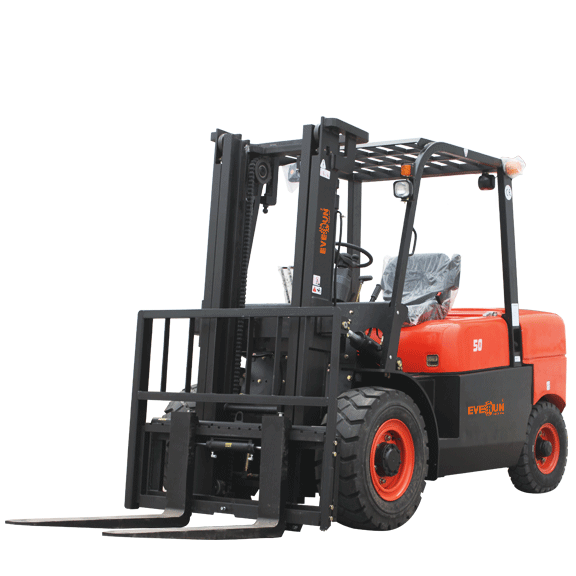

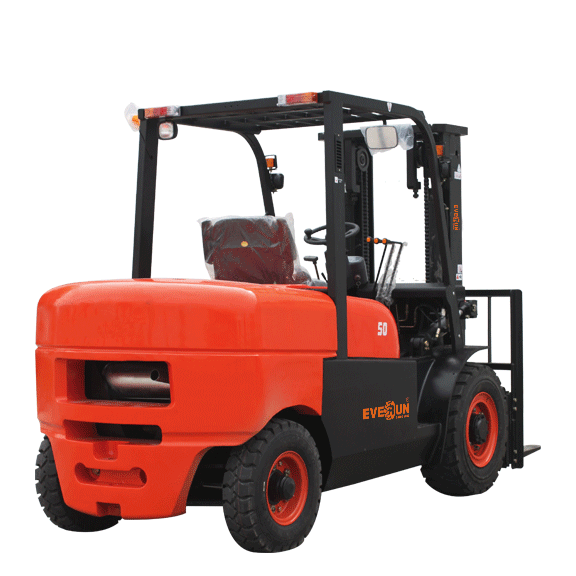

Diesel Forklift—ERDF50

Specifications | Descriptions | Technical Parameters

With 13 years wheel loader exporting experience and under the help of our own customer, Qingdao Everun Machinery Co., Ltd established in beautiful coastal city Qingdao enjoying convenient transportation access.

Specifications

Rated Capacity

5000kg

Load Center

500mm

Load Center

Diesel

Descriptions

With 13 years wheel loader exporting experience and under the help of our own customer, Qingdao Everun Machinery Co., Ltd established in beautiful coastal city Qingdao enjoying convenient transportation access.

Technical Parameters

FEATURE

SIZE / DETAILS

Term No. ERDF50
Rated Capacity 5000kg
Load Center 500mm
Power Type Diesel
Transmission Hydraulic
Lifting Height 3000mm
Free Lifting Height 150mm
Truning Radius 3000mm
Overall Length 4350mm
Overall Width 1400kg
Overall Height(Mast Lowered) 2330mm
Overall Height(Mast Raised) 4250mm
Overall Height(Overhead Guard) 2330mm
Fork Length 1820mm
Fork Width 150mm
Fork Thickness 55mm
Max. Driving Speed(With/Without Load) 20/24km/h
Max. Lifting Speed(With Load) 375mm/s
Max. Traction(With/Without Load) 31/18kn
Gradeability(With/With Load) 15/20%
Tilting Angles(Forward/Backward) 6/12°
Service Weight 6800kg
Engine Model CHINA ENGINE
Power 62kw
Rated Speed 2400rpm
Displacement 2.67L
No. Of Cylinder 4
Front Overhang 585mm
Wheel Base 2150mm
Front Tread 1180mm
Rear Tread 1190mm
Front Tire 300-15
Rear Tire 6.50-10
